8×8 Pixel Dot‑Matrix Mechanical Display

Assembled dimensions: approx. 192 × 168 × 45 mm

一款8*8像素点阵机械屏

组装后尺寸约192*168*45mm

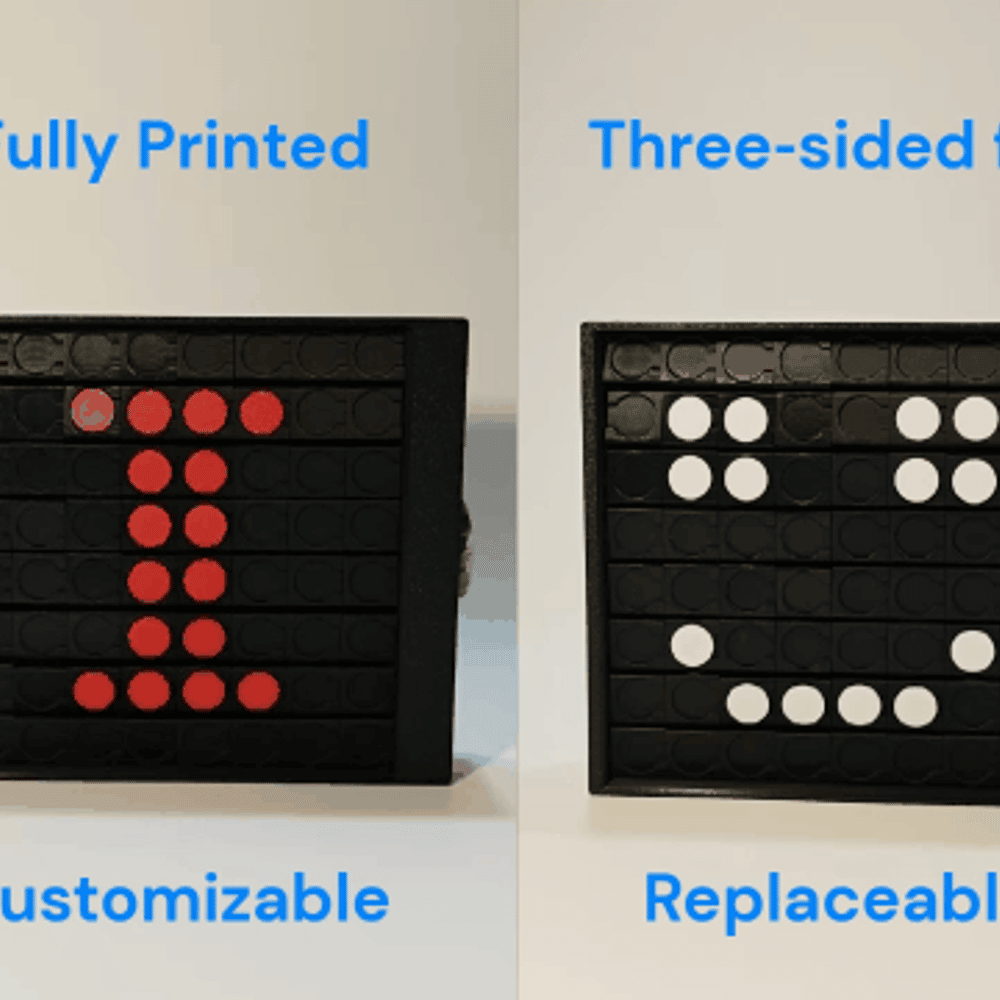

• Fully 3D‑printed design, no fasteners and no adhesive required.
• Three‑sided flip mechanism: triangular‑prism pixel blocks rotate across three faces. Knob features a click‑stop ratchet for position limiting.
• Customizable content: print ample pixel panels as desired for installation and custom display.
• Interchangeable pixel panels: swap graphics with simple operations.

• 全3D打印，0五金0胶水
• 三面翻转，三角柱型像素块三面翻转，旋钮有“限位棘轮”
• 自定义内容，可按喜好打印足够数量的像素板，安装并展示
• 可替换像素板，简单操作即可更换图案

Printing Notes

• Print with PLA filament. Only one component requires support structures. Use 3‑wall thickness for axles. 0.12 mm layer height is recommended for pixel panels; these parameters are pre‑configured in the 3MF file.
• Due to variations in printers, filament and ambient conditions, print a small batch of pixel blocks and panels first for fit testing. Adjust pixel‑panel dimensions via scaling in your slicer. Light sanding may be needed for long axles if required.
• Constructed from plastic. Loosening may occur after repeated disassembly and replacement.

打印注意

• 使用PLA简单打印，仅一个组件需要支撑，轴建议使用三层墙，像素板建议使用0.12mm层高，均已在3mf中配置
• 因为机器、耗材、环境不同，建议先打少量的像素块和像素板用来测试，可在切片软件中通过“缩放”微调“像素板”，长轴如有必要可简单打磨
• 塑料材质，多次拆换后会松动

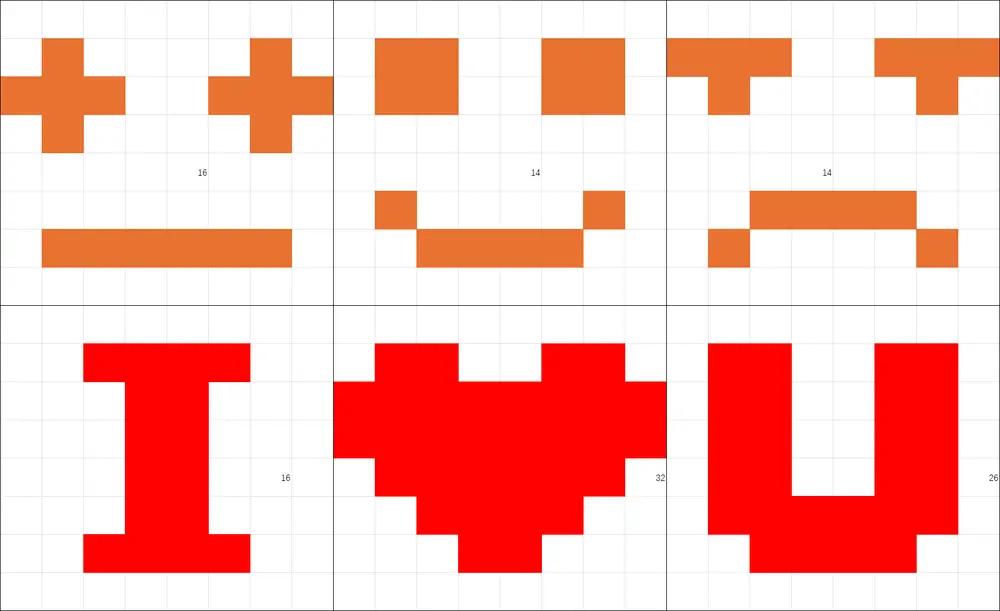

You may sketch your desired patterns in Excel or on paper, then calculate the required number of panels.

可以使用Excel或者纸笔等画出想要的图案，然后计算片数

Assembly Instructions

组装示意

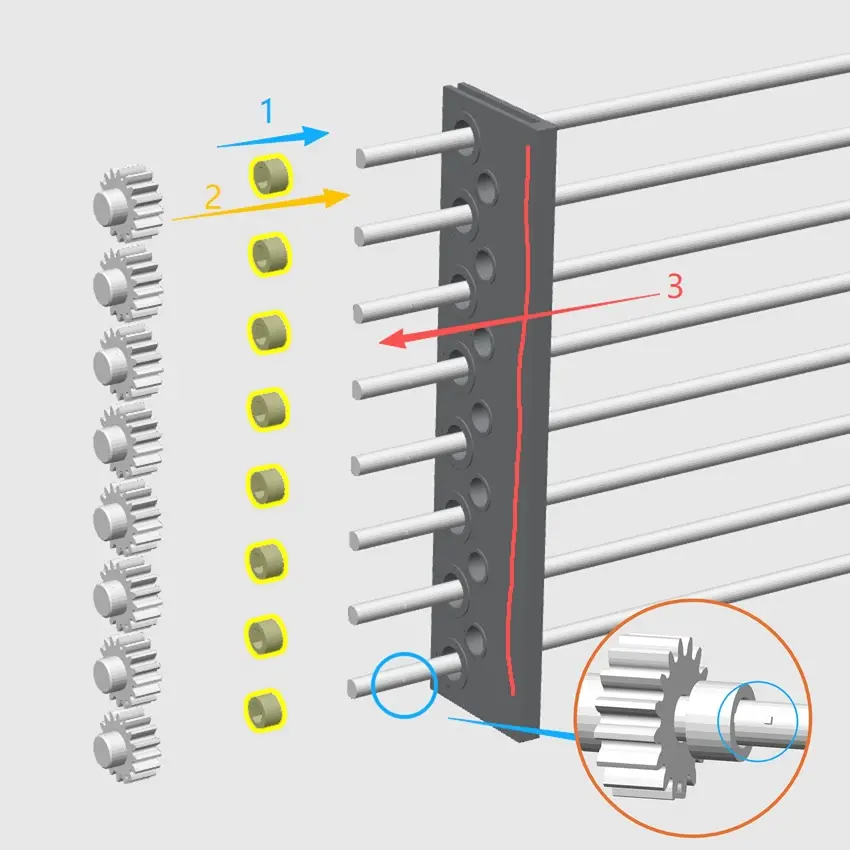

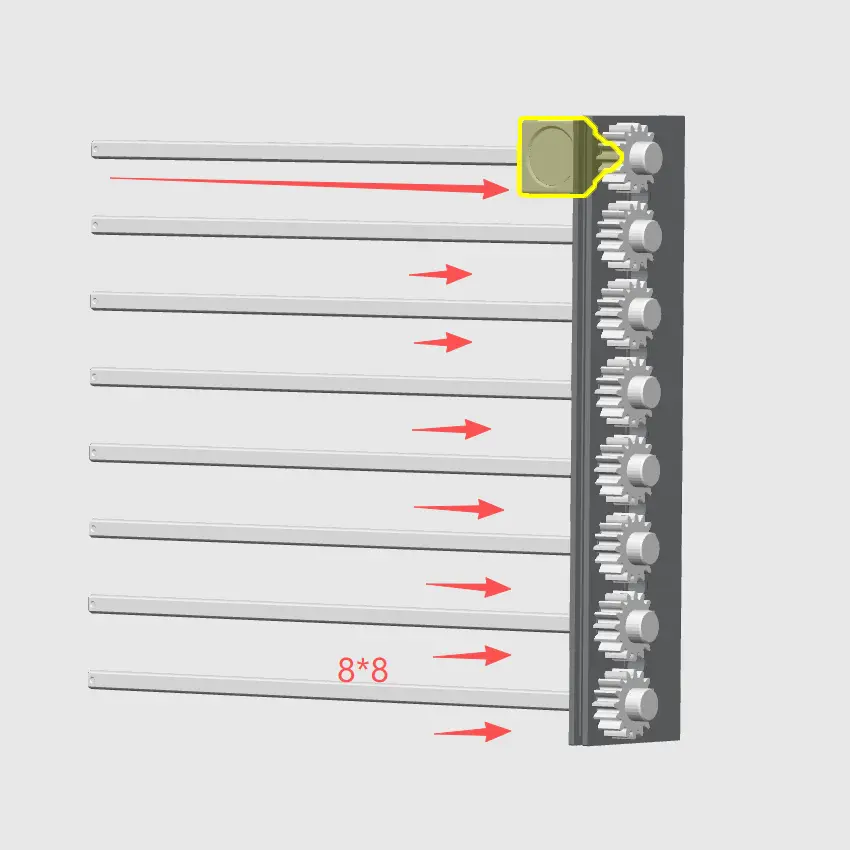

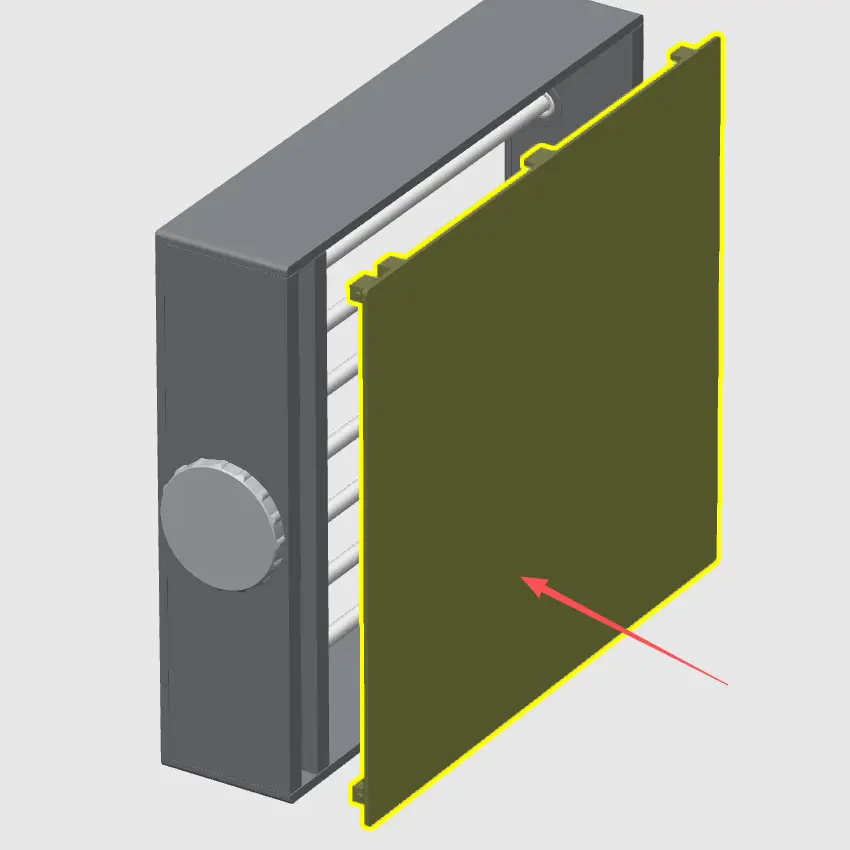

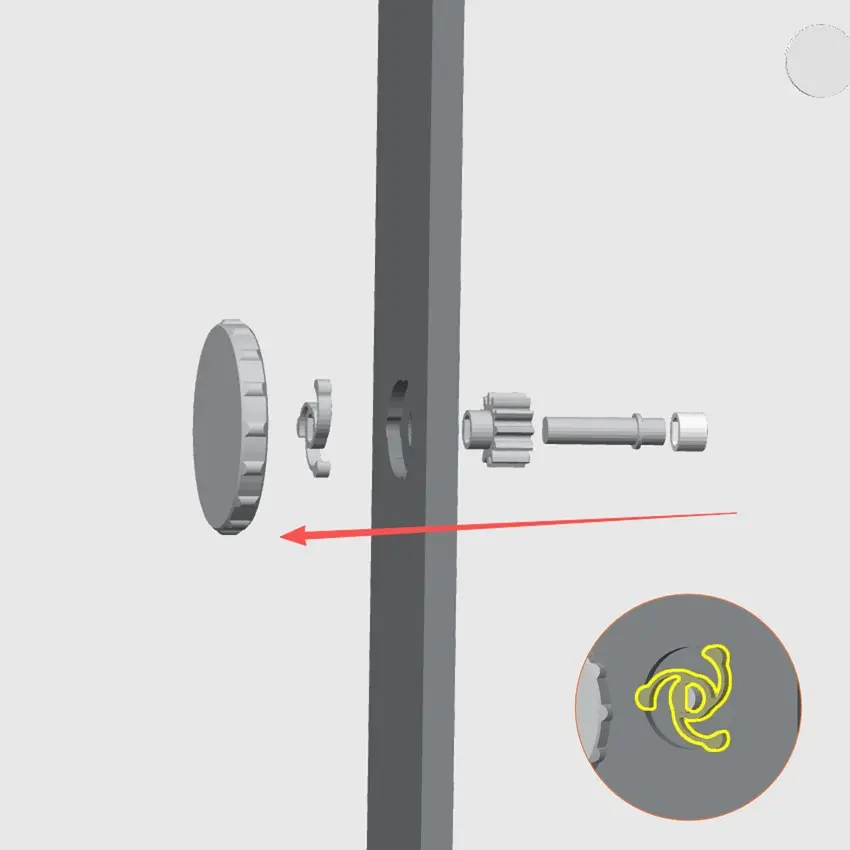

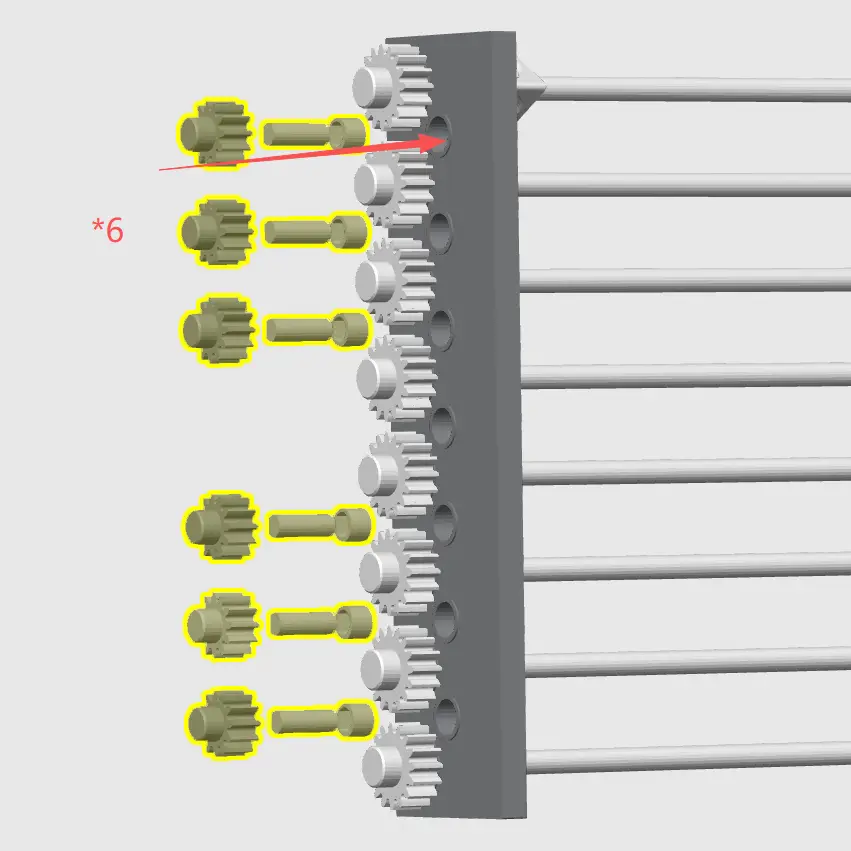

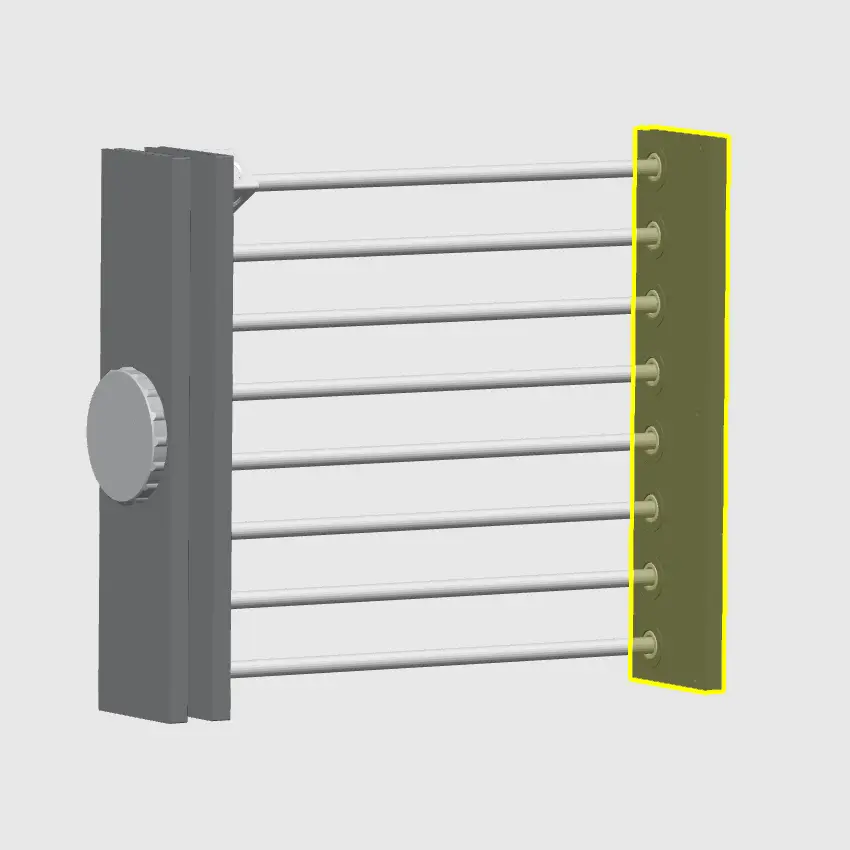

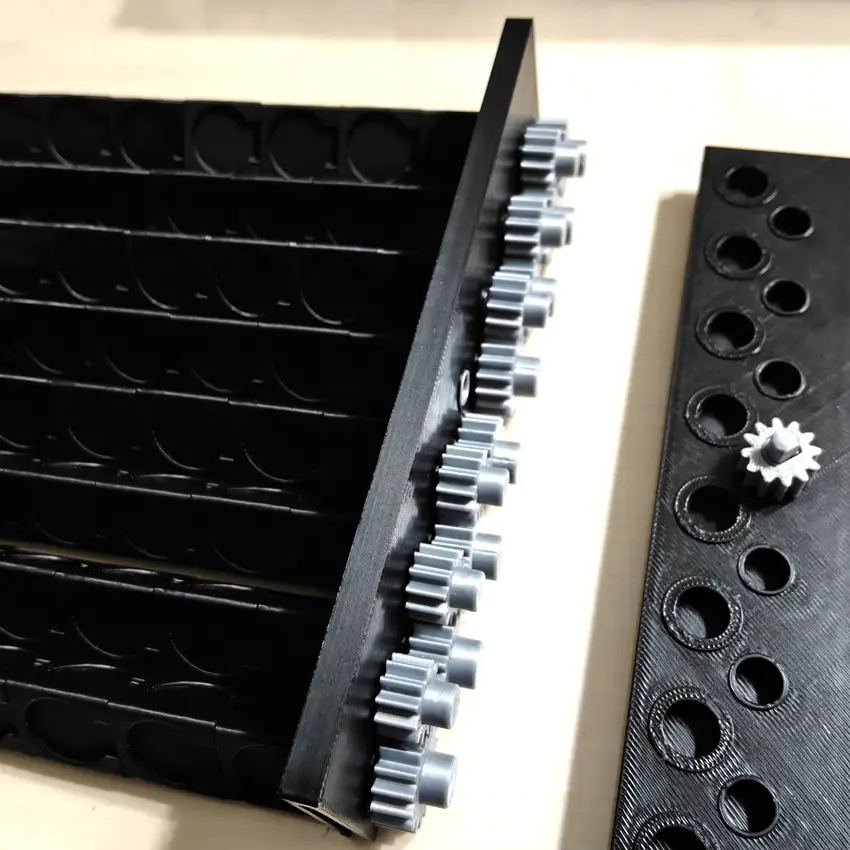

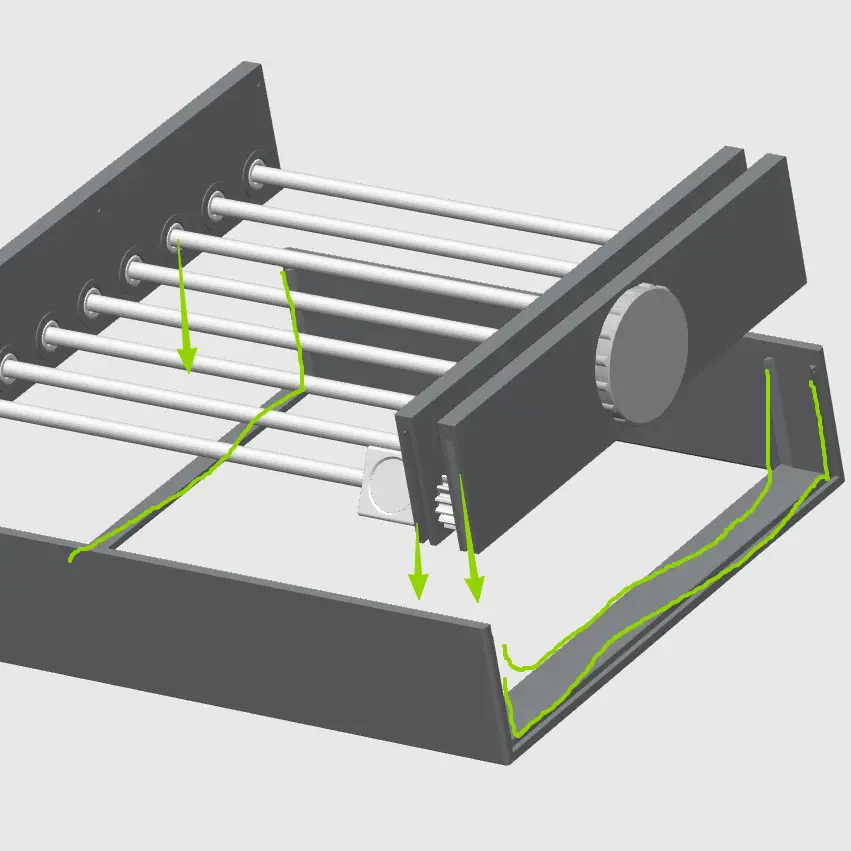

Align all pixel blocks to the same orientation and lay them flat on a work surface to ensure uniform display faces. Align the right‑side cover with the axle holes and snap into place.

此步骤请将所有的像素块调整到同一个方向，然后平放在桌面上，以保证展示面相同，然后将右侧盖板对准轴孔盖上
