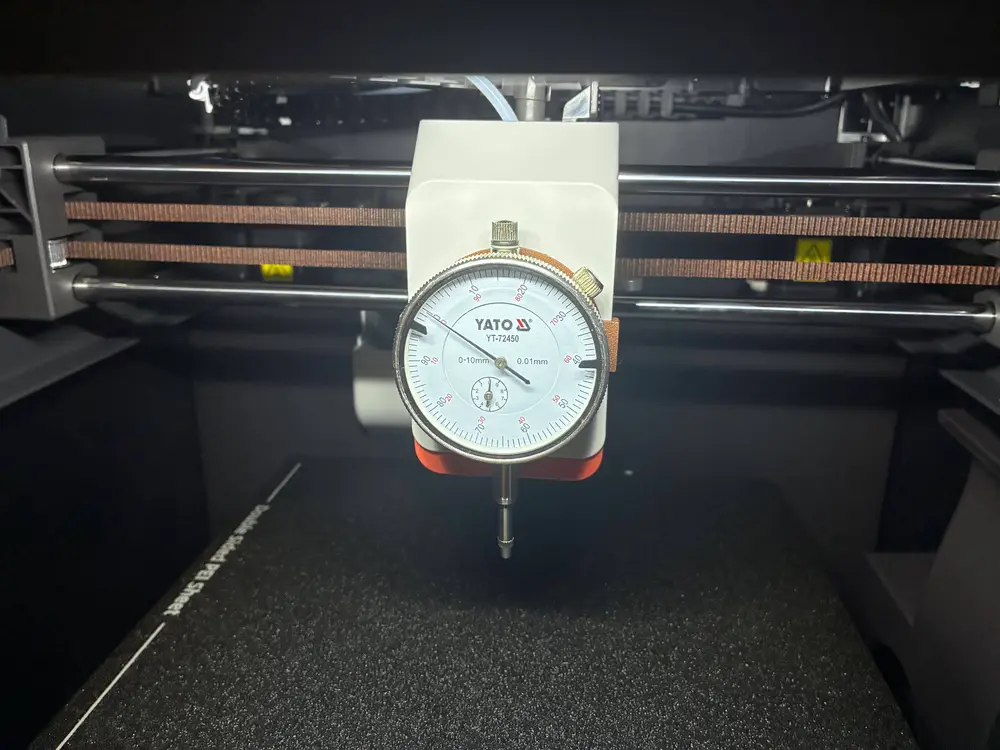

Anycubic Kobra S1 – YATO YT-72450 Dial Indicator Mount (Remix)

A modified adapter mount for the Anycubic Kobra S1, designed to fit the YATO YT-72450 dial indicator for precise measurement of print bed height and mechanical bed leveling.

Modifications

• Mounting hole spacing: 32 mm, adapted for the YATO YT-72450 dial indicator.
• All other geometry remains unchanged from the original design.

This adapter allows you to use a dial indicator to measure bed height variations and assist with precise mechanical adjustment of the Kobra S1 print bed.

Original Design

Original model: Anycubic Kobra S1 Digital Dial Gauge Indicator Mount

Original creator: As credited on the original MakerOnline page

Original model link: https://www.makeronline.com/en/model/Anycubic%20Kobra%20S1%20Digital%20Dial%20Gauge%20Indicator%20Adapter%20Mount/173993.html

License and Attribution

This remix is based on the original design and is shared under the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) license.

The original creator must be credited, the original model linked, and the modification clearly identified. This remix must be distributed under the same license. Commercial use is not permitted without separate permission from the relevant rights holder.

Print Profile

• Printing technology: FDM
• Recommended material: PLA or PETG
• Nozzle: 0.4 mm
• Layer height: 0.2 mm
• Supports: Not required, provided the model orientation allows it
• Infill: 25–40%
• Walls: 3–4

Check the fit and mounting-hole spacing before use.
