Description

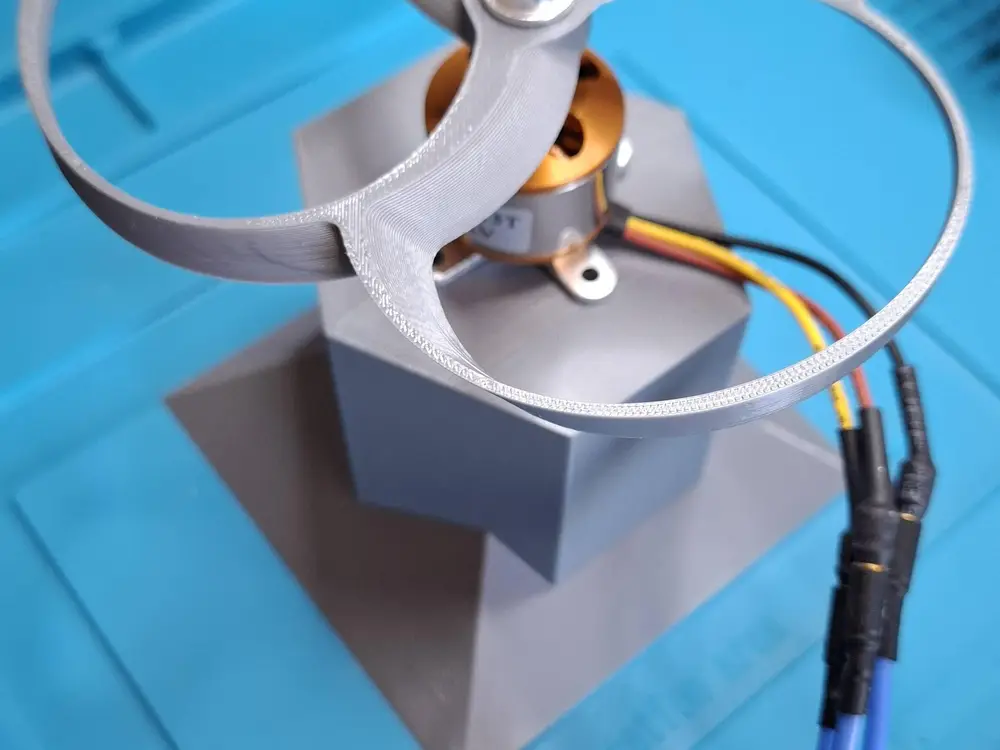

The DC motor test base can be used to securely fix the motor to the mounting platform.
- Bottom plate dimensions: 100 × 100 mm
- Top section: 70 × 70 mm
- Distance between the centers of the opposing holes: 32.5 mm
- Hole diameter: 3.5 mm
- Suitable for: M3 heat-set inserts (4 mm OD × 5 mm long)
The Toroidal Propeller in the image has been printed by the designs from "STRIKING FPV" and has been printed only for testing purpuses.
