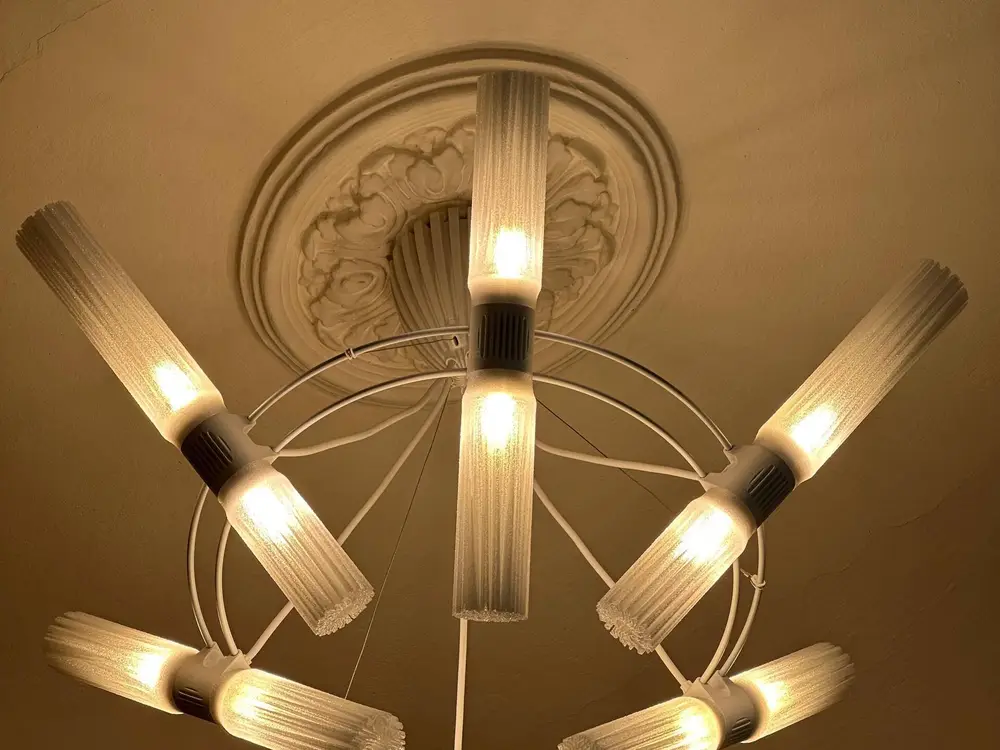

Designer Ceiling Chandelier
@User_2054215
Donate
Message
Follow
Recommended printing method
Add
CeilingChandelier
Anycubic Kobra S1 Max
Kobra 3
、
Kobra 2
、
Kobra S1
、
Kobra 4
、
Kobra X
、
Kobra 3 V2
、
Kobra 3 Max
、
Kobra 2 Max
、
Kobra 2 Pro
、
Kobra 2 Neo
、
Kobra 2 Plus
/ Plates:5
/ 149h33m
6
Share
Description
The ceiling chandelier is almost entirely printed from PETG, with the exception of the hoops and standard fasteners.
Before printing, carefully check the slicer settings in the .3mf files, as they are quite specific for some parts. For example, the three-size plafonds are printed in the vase mode, while the lamp socket casings require a large number of supports. Otherwise, the printing settings are standard.
The design involves the use of non-printed components, namely:
- 16 M3 screws and self-locking M3 nuts
- 12 ceramic sockets for E27 light bulbs
- 1 mm steel cable and crimped fasteners
- M8 eyebolts with an L80 mm length and corresponding eyebolts
- Two hoops with diameters of 500 and 450 mm and a cross-section diameter of 6 mm (you can buy a ready-made open hoop online or bend it yourself)
- A clamp for fixing wires in the Hub
- An electric cable with a total cross-section diameter of 5 mm, selected according to the required voltage
- Terminals for connecting cables
- 12 LED bulbs with an E27 base and a 45 mm bulb diameter
