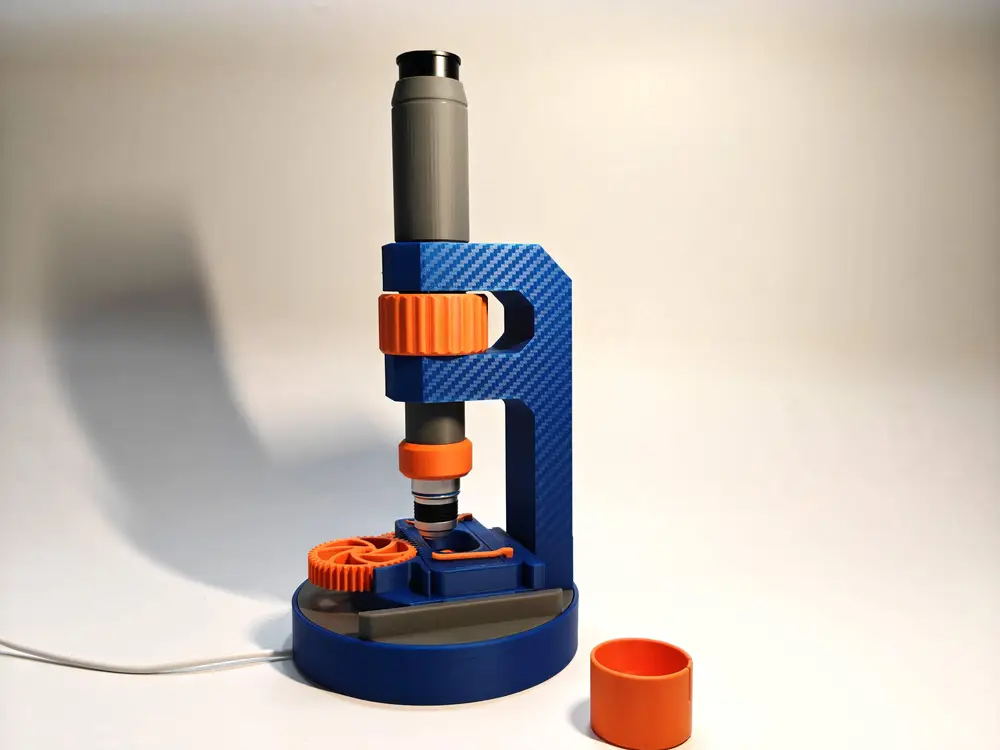

Microscope 显微镜

Donate

Message

Recommended printing method

Filament 3D Printers

Filaments

Print Profile Files (1)

Raw Model Files (0)

Add

Designer

/ Plates:5

/ 9h47m

Description

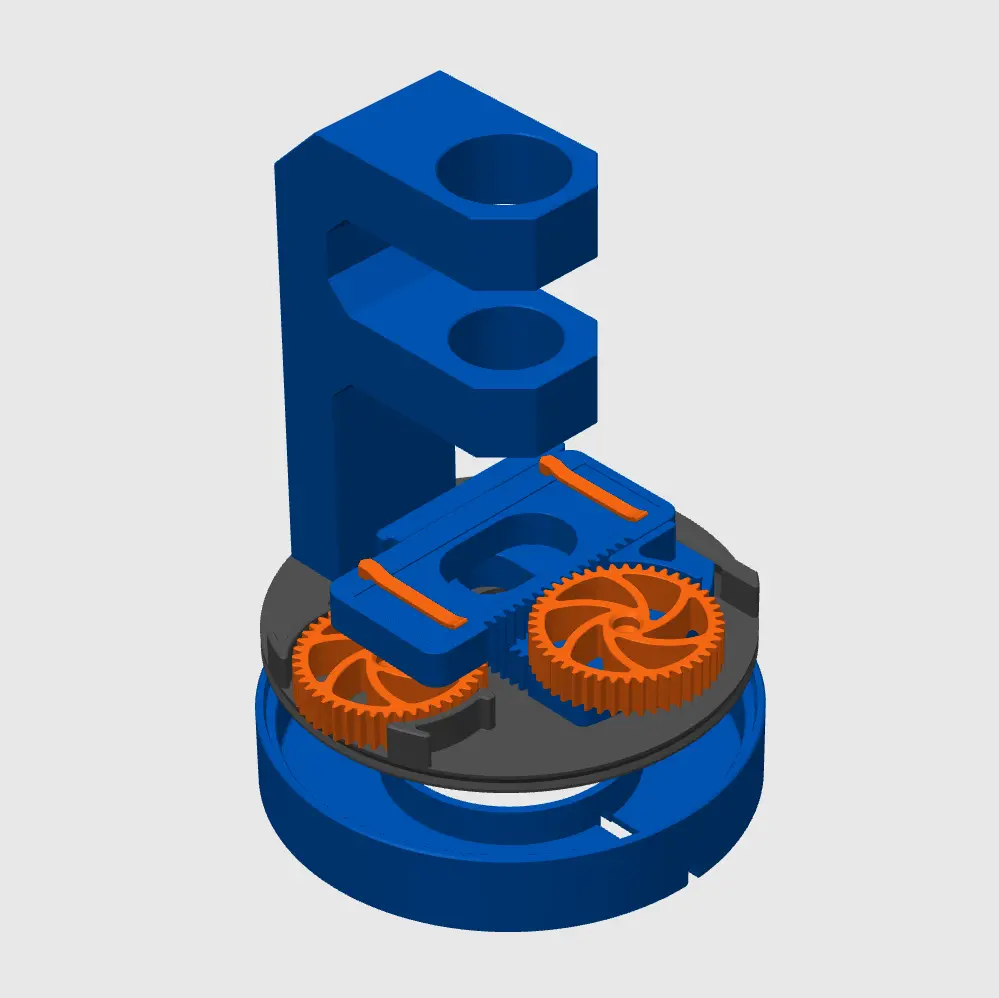

Overall assembled dimensions: approx. 238*125*125mm

组装后尺寸约 238*125*125mm

Equipped with H10 eyepiece (23.2mm interface) and 185-type 40× objective lens (20.2mm interface)

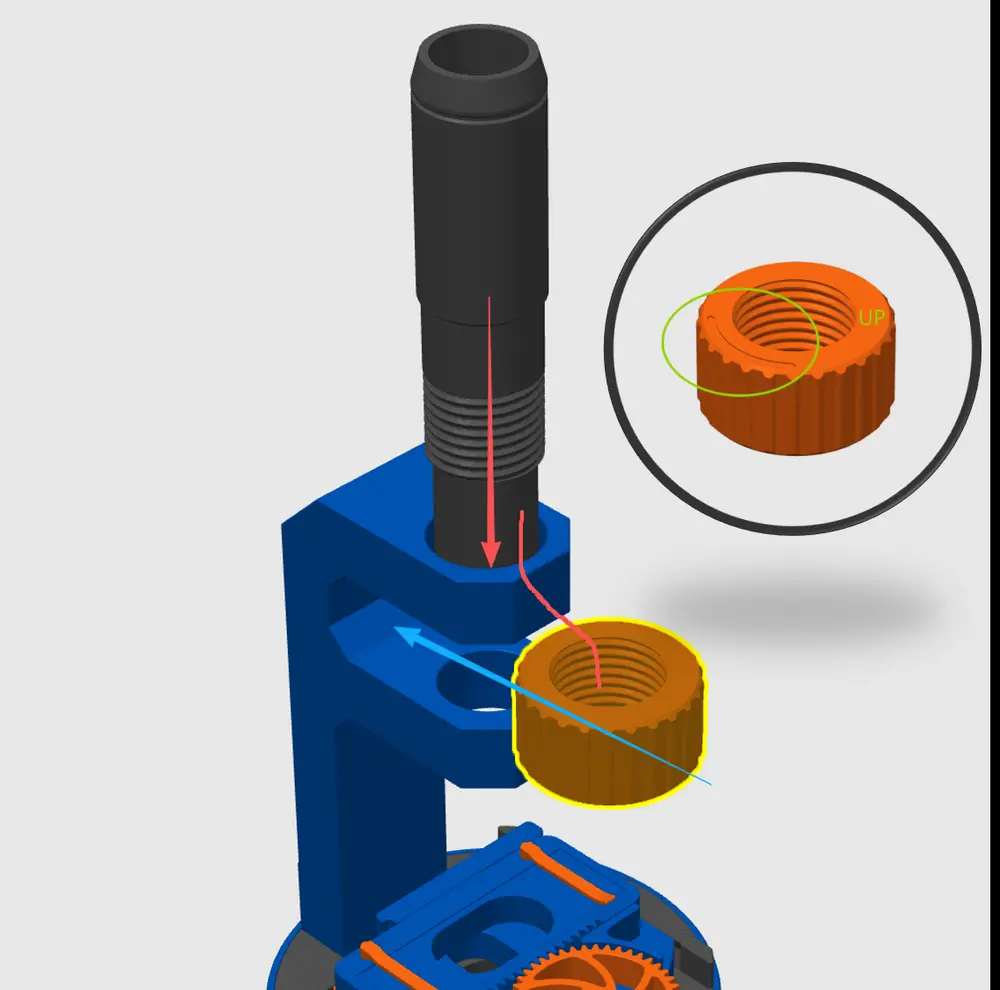

Focus adjustment knob
Slide holder clamp

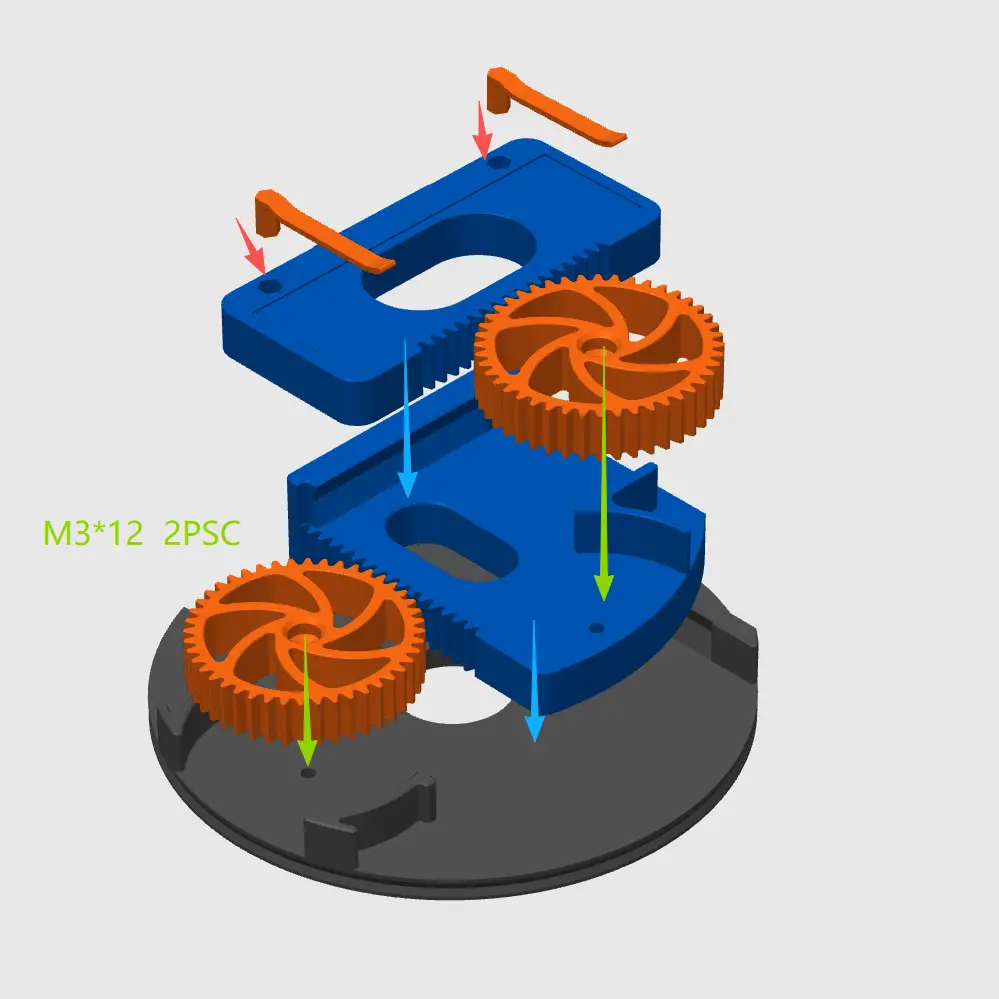

Movable mechanical stage

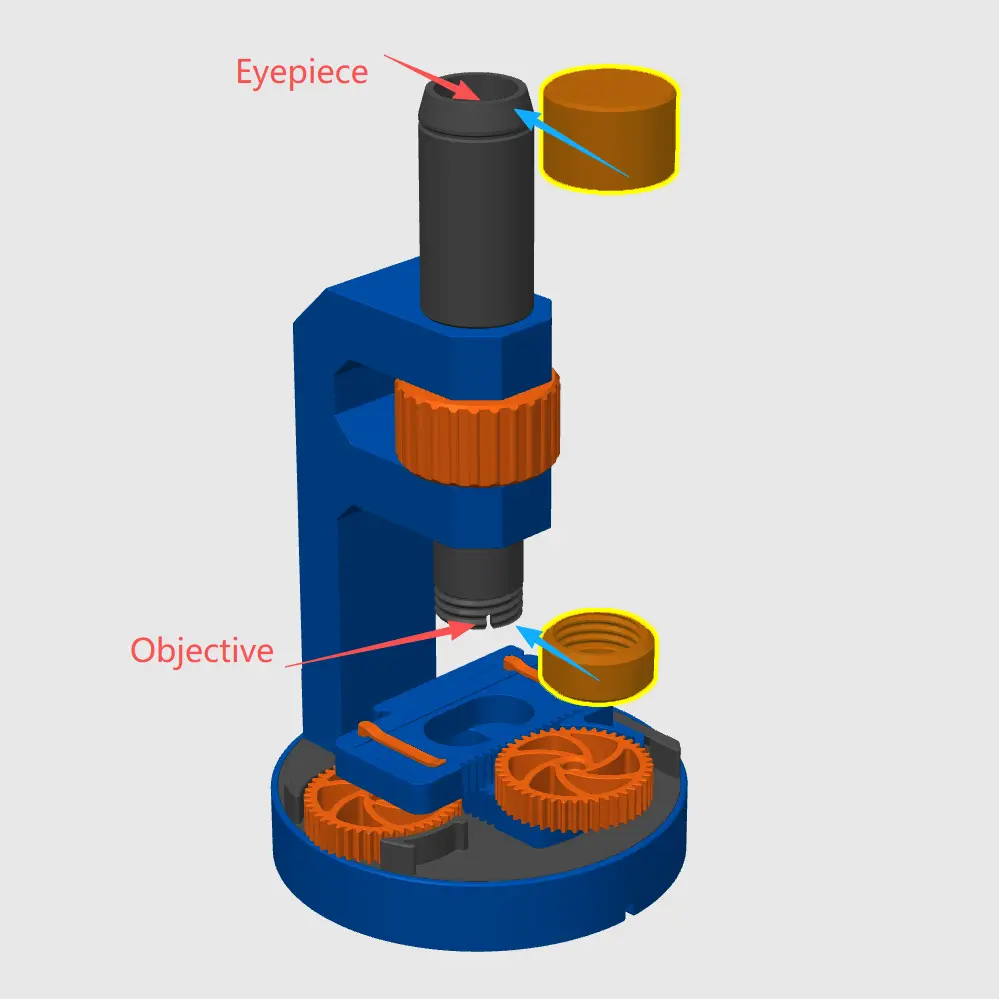

Easy-mount objective lens; protective housing for eyepiece

• 使用H10 目镜 23.2mm接口，185型40倍物镜 20.2mm接口

• 调整焦距旋钮

• 载玻片夹具

• 可移动载物台

• 物镜轻松安装、目镜保护外壳

Operating Instructions

The working distance of the 40× objective lens is only 0.53mm. Rotate the focus knob slowly and patiently to obtain a clear focal plane.

使用提示

40倍物镜的工作距离只有0.53mm，请耐心旋转旋钮调整清晰的焦距。

Safety Warnings

1、Do not stare directly at strong light for extended periods, especially for children and teenagers. It is recommended to observe via a mobile phone camera displayed on screen.

2、Handle slides and coverslips with care to avoid cuts and scratches.

安全提示

1、请不要长时间直视强光，特别是儿童青少年，建议通过手机摄像头拍摄到屏幕观察。

2、请妥善处理载玻片、盖玻片，避免划伤等。

Non-3D Printed Components List

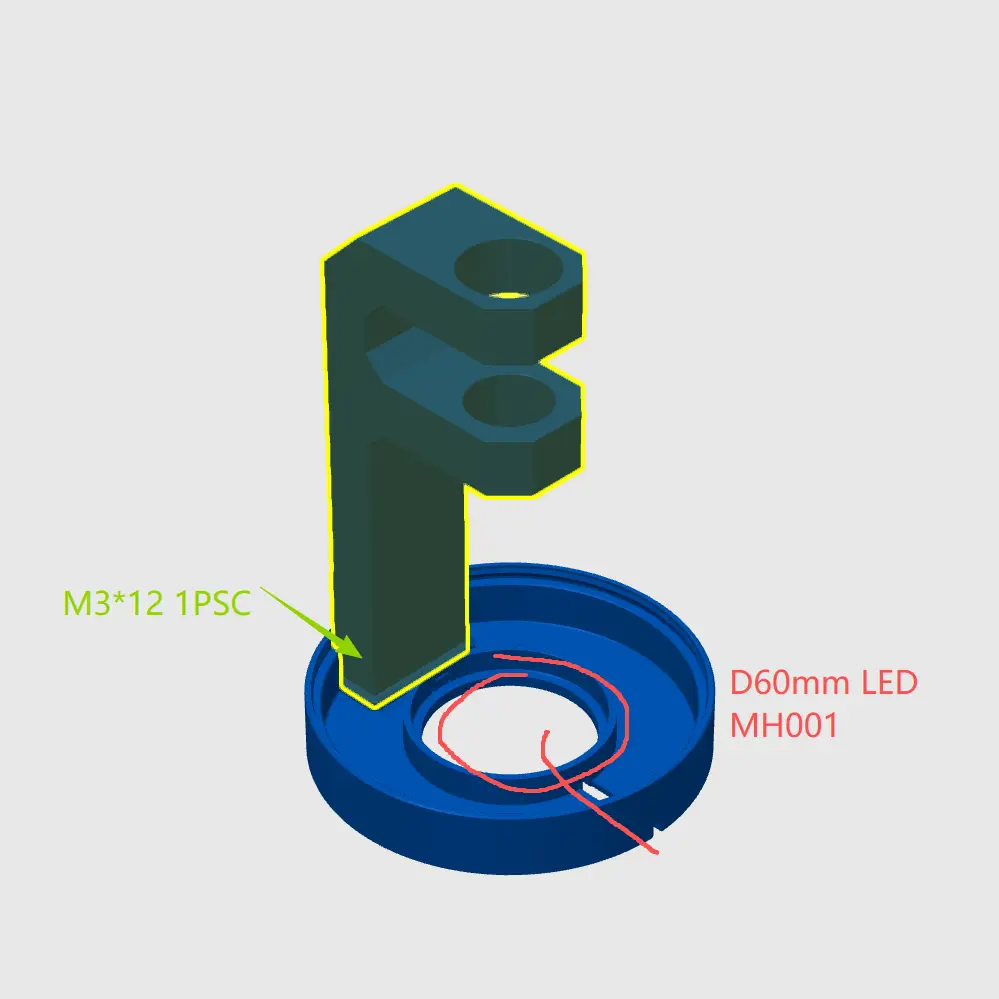

1、3 pcs M3*12 flat head screws (CSK screw)

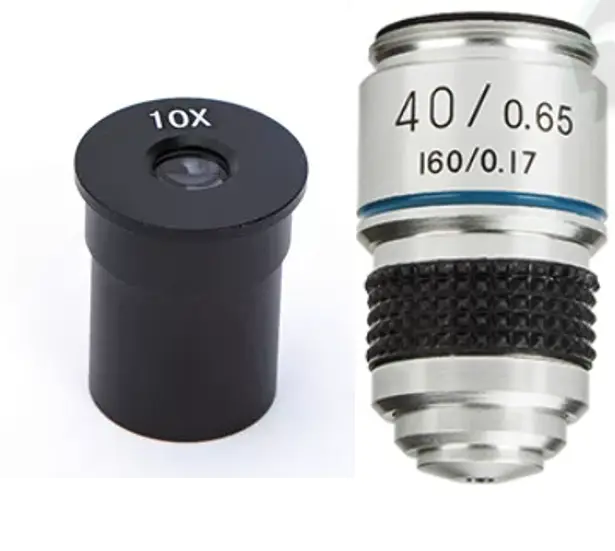

2、 H10 eyepiece, 1 pc 40× objective lens

3、 60mm diameter LED light (e.g., Bambu Lab MH001)

4、20×20mm coverslips; 25.4×76.2mm microscope slides

非3D打印件如下

1、M3*12 平头螺丝 3个

2、H10目镜1个、40倍物镜1个
