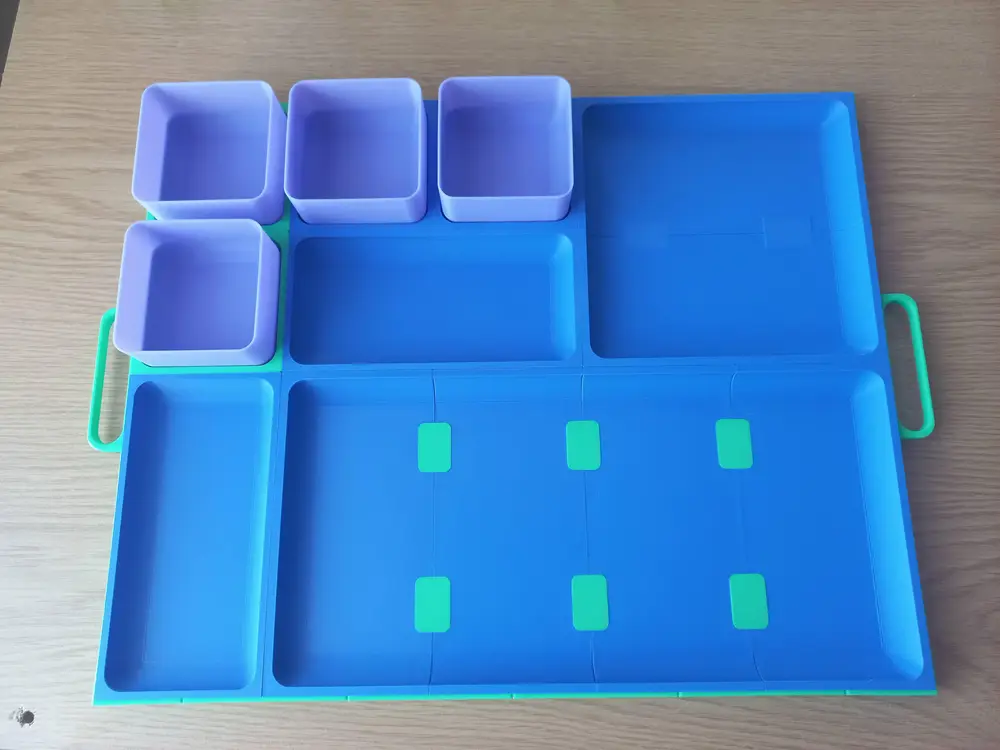

Modular Tray
Modular Organizer Tray is a universal, modular organizer tray designed for maximum versatility and functionality. The customizable layout of compartments and the ability to freely combine modules make it perfect for manual work with small parts, such as assembling LEGO, DIY projects, repairs, or organizing tools. The tray fits perfectly in drawers, helping you keep order among office supplies, electronics, or household items. Modules can be easily connected and rearranged to suit your needs.Additionally, each compartment features specially rounded edges that make it much easier to pick up even the smallest items, significantly improving user comfort. Once assembled, the tray is rigid and stable, so you can easily carry it with all its contents from place to place – an ideal solution for both work and home workshops.The model offers two versions of connectors – loose and tight. The main difference between them lies in the ease of disassembly: loose connectors allow for quick separation of modules, while tight connectors provide a more rigid and stable structure. Assembly of both versions is simple and only requires inserting the connectors perpendicular to the slots. If maximum rigidity of the entire tray is desired, it is recommended to use tight connectors along with additional side connectors around the entire perimeter of the modules. Otherwise, loose connectors will be fully sufficient, and side connectors are then optional and can be used only in places where their application is deemed necessary.
Its modular so you have to print that many pices of each part, how you need to get your required tray

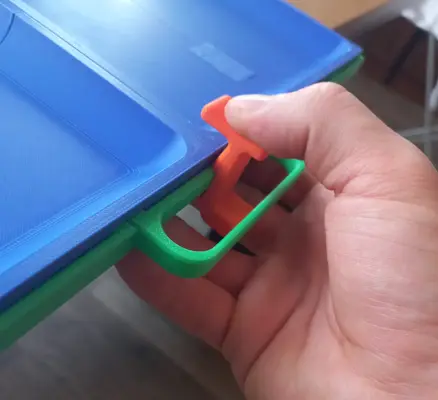

Print profile include specjal tool to make disassembling easier ;)
Best way to assemble it is put parts upside down, then connect each segments with connectors. After that install all side connectors
Print settings:
0,4 mm nozzle
0,2 layer height
15% Grid infillouter brims 5mm (optional, better results but need to be carefully removed)
No supports

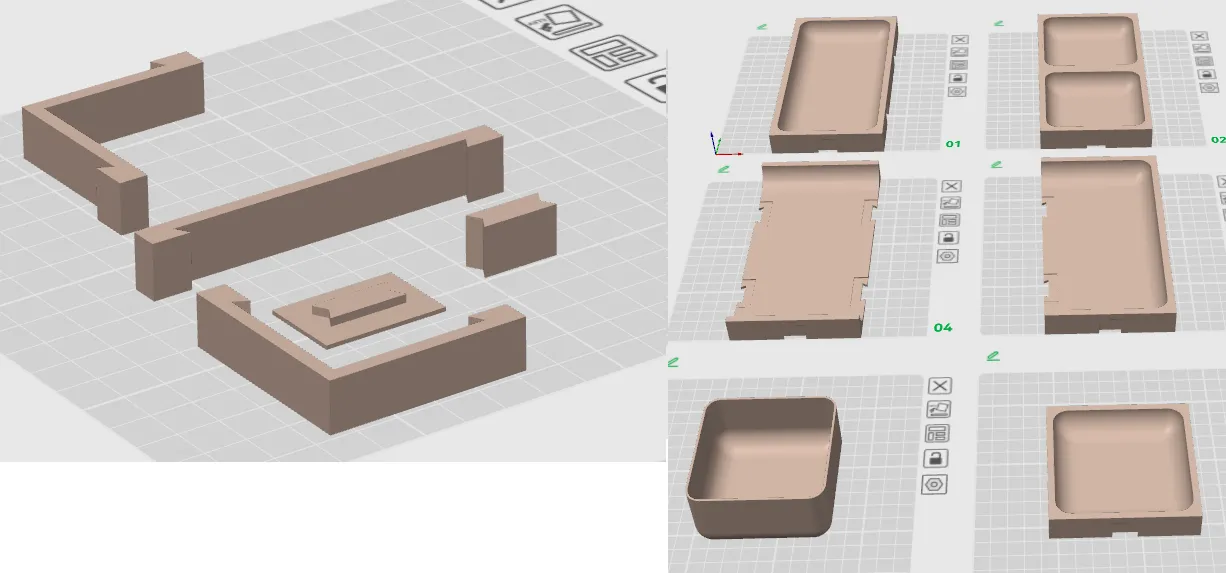

Print possition:

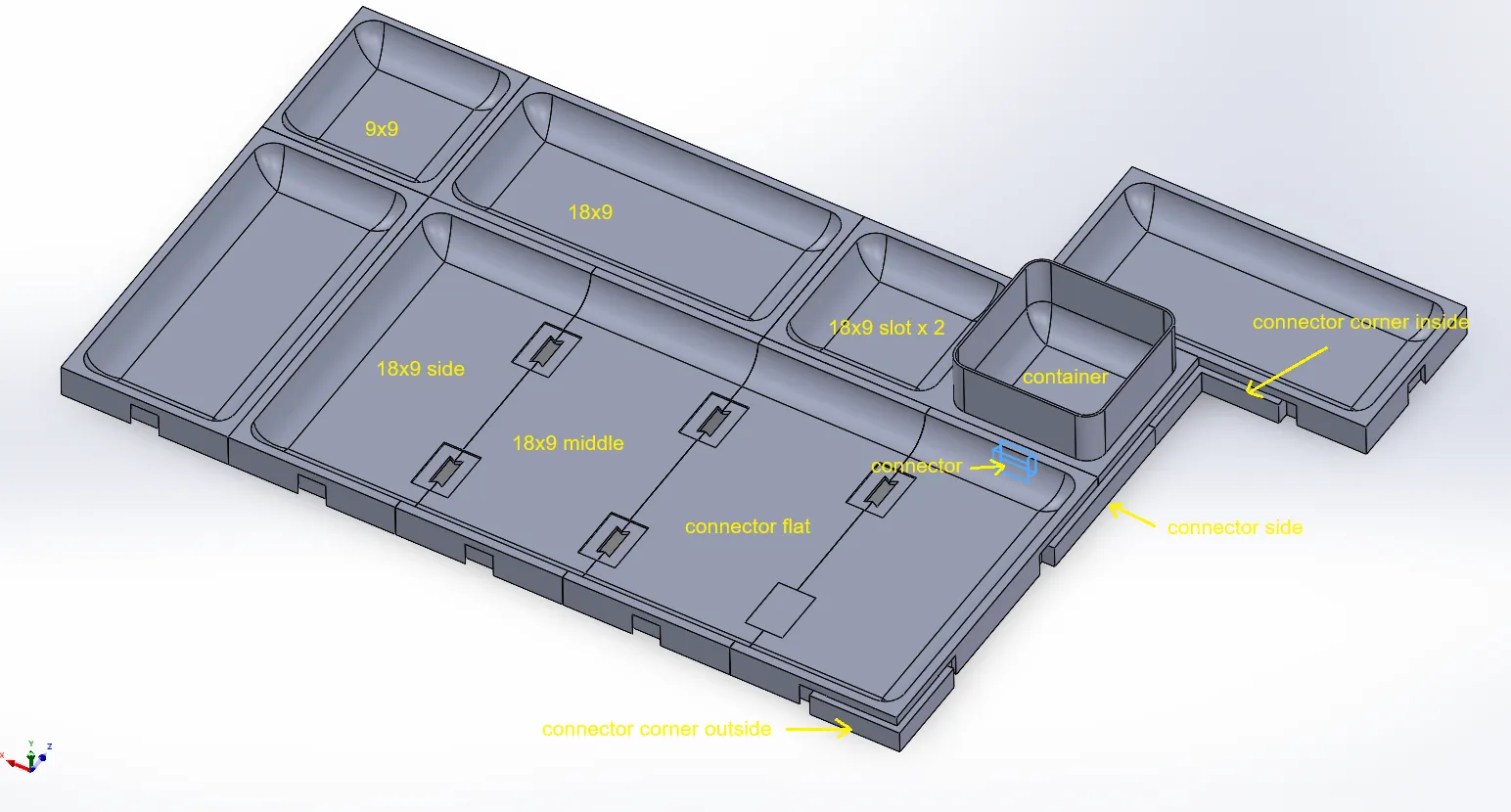

Part list:

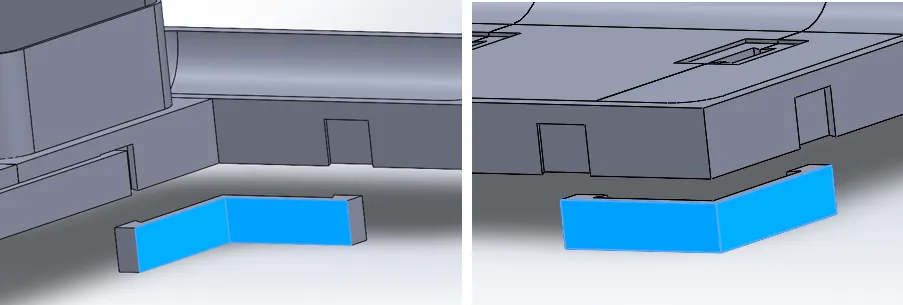

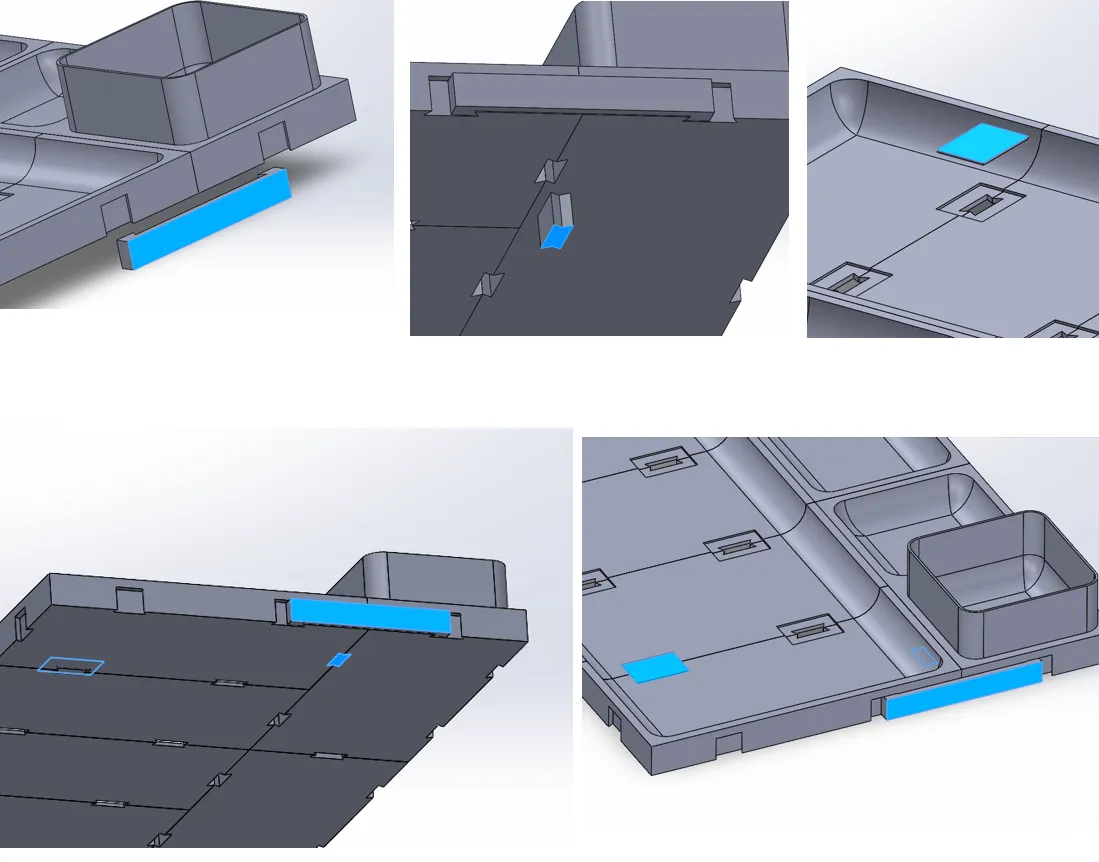

Connector placement:
