Railroad Island - Mini Train Diorama

Railroad Island - Mini Train Diorama

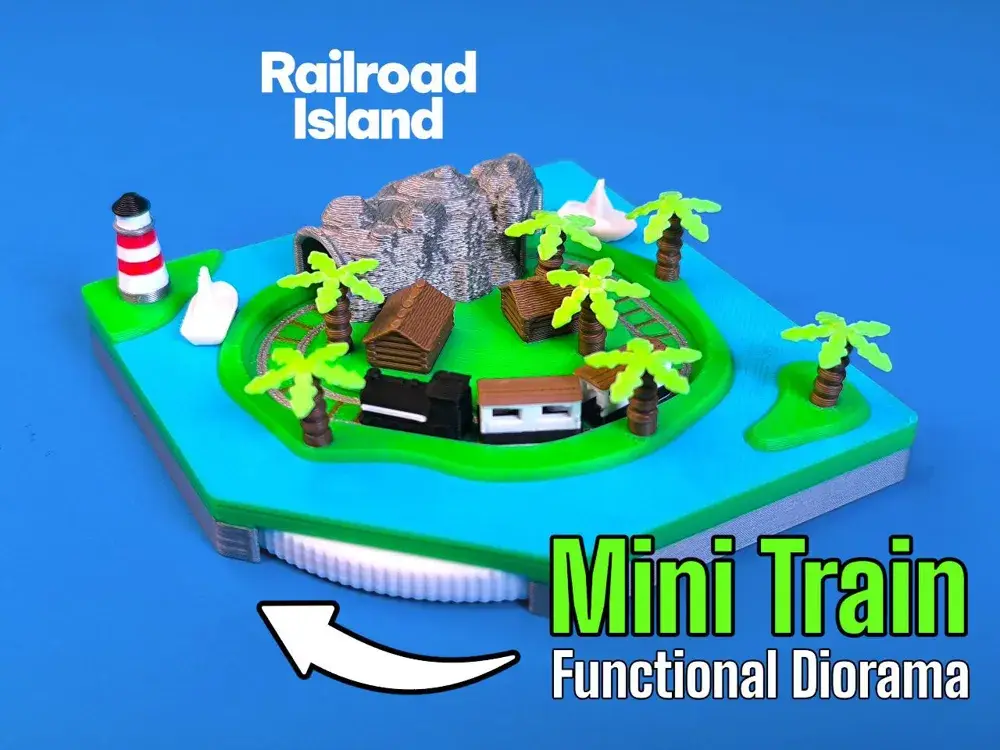

2025 was the year of the “Mini Train,” which is why I saved something special for the end of the year. In Railroad Island, the concept of inside and outside is slightly reversed. On the island, the small train runs beside palm trees and through a cave, while on the outside, ships travel along the coast.

 As with all the other dioramas, you can turn the hand-wheel to set the ships and the train in motion, or place the diorama into the motorized boxes to maximize the fun.

Check the “Mini Train Collection” and leave a follow👍

Printing:

Following PLA Basic Filaments are used

• Silver/Grey
• Cocoa Brown
• Black
• White
• Cyan
• Green
• Red (Lighthouse)

Other colors are possible of course, look what you have in stock.

I printed as always with a 0,4mm nozzle! Iam very pleased with the result, but you can try a 0,2 nozzle as well.

Assembly:

• You need 6pcs round 4x2 magnets for the train with the wagons and 2pcs round 4x2 magnets more for each ship (up to 2). In total 10x magnets

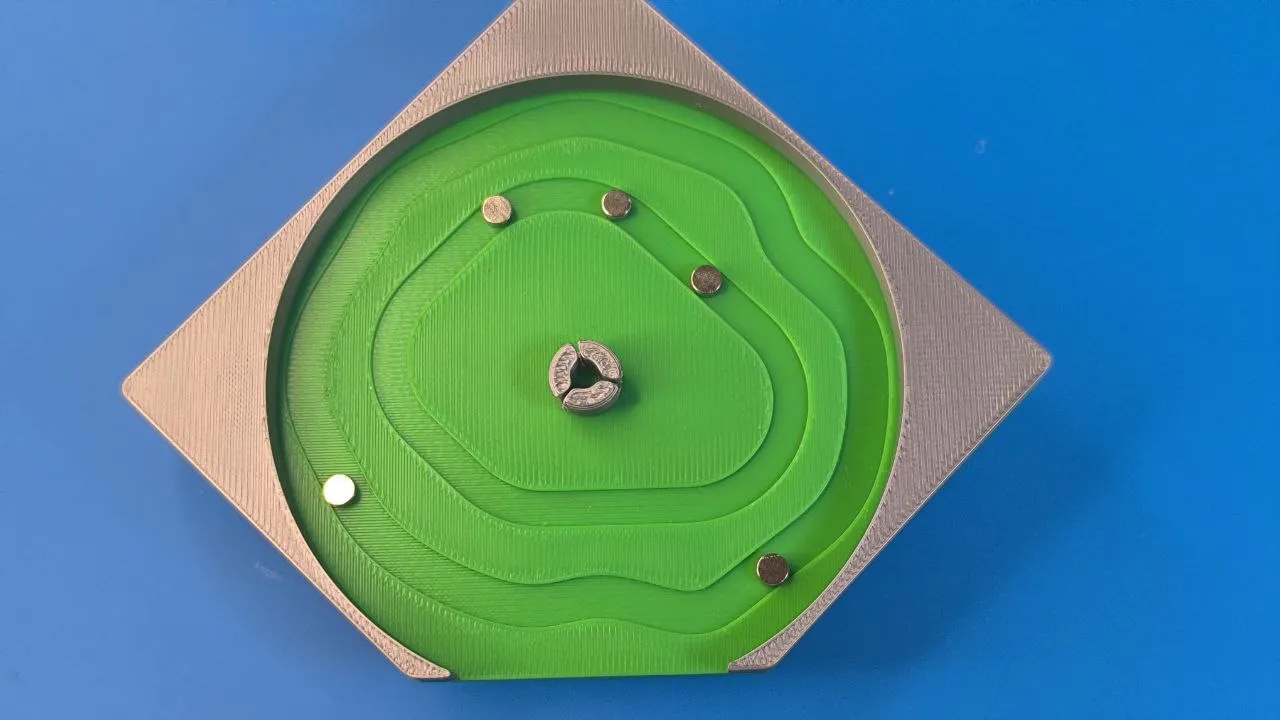

1. Insert 3pcs Magnets in the train, wagons and ships with same polarity direction
2. Insert 3 magnets into the inner track and hold them with the train and wagon from the other side
3. Insert 2 magnets to the outer track and hold them with the ships
4. Adjust all magnets so the hand-wheel can catch all magnets
5.

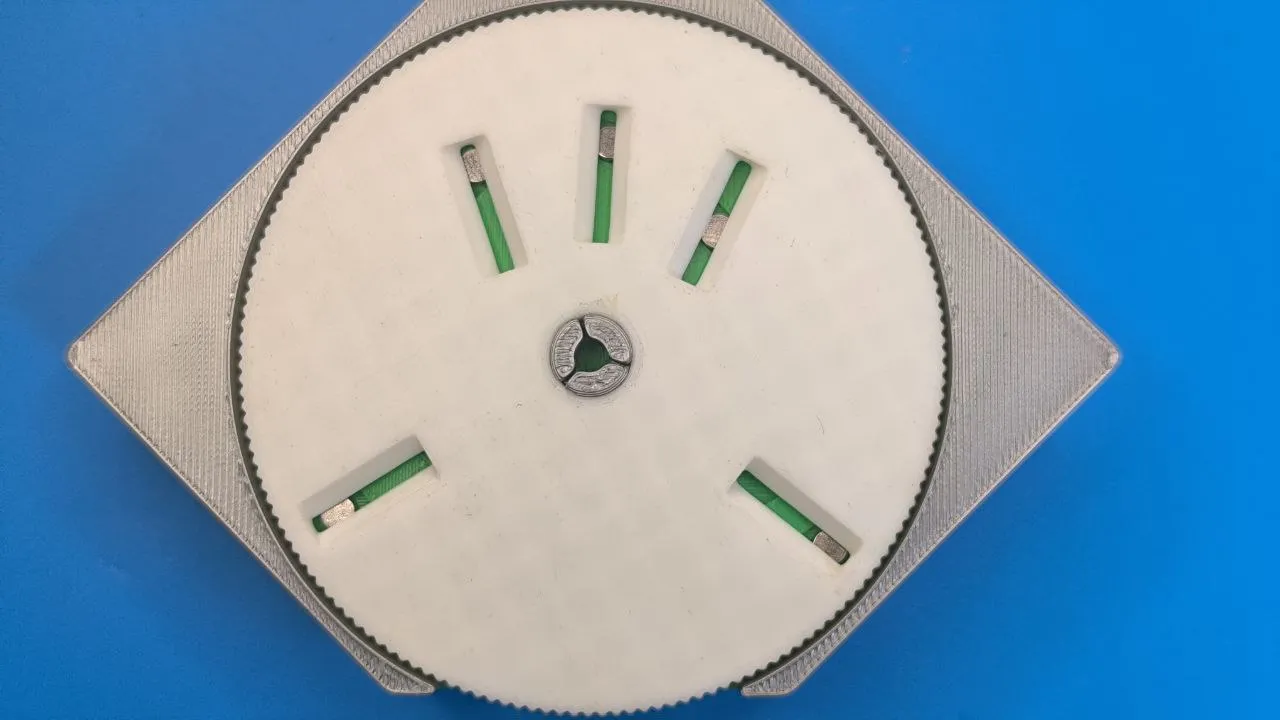

6. Press the hand-wheel in place . Check again if all magnets are captured correctly
7.
8. Remove the train and put the terrain on top
9. Use the trees &, houses and a bit of glue to combine base with terrain
10. Put the train back on track and have fun.

I hope you like this little project.

If you want to support me, you can simply follow, boost & like the model.

You want to sell printed parts from my designs? Commercial license and more you find through my Linktree or on Patreon:

https://www.patreon.com/BamBamDesign/
