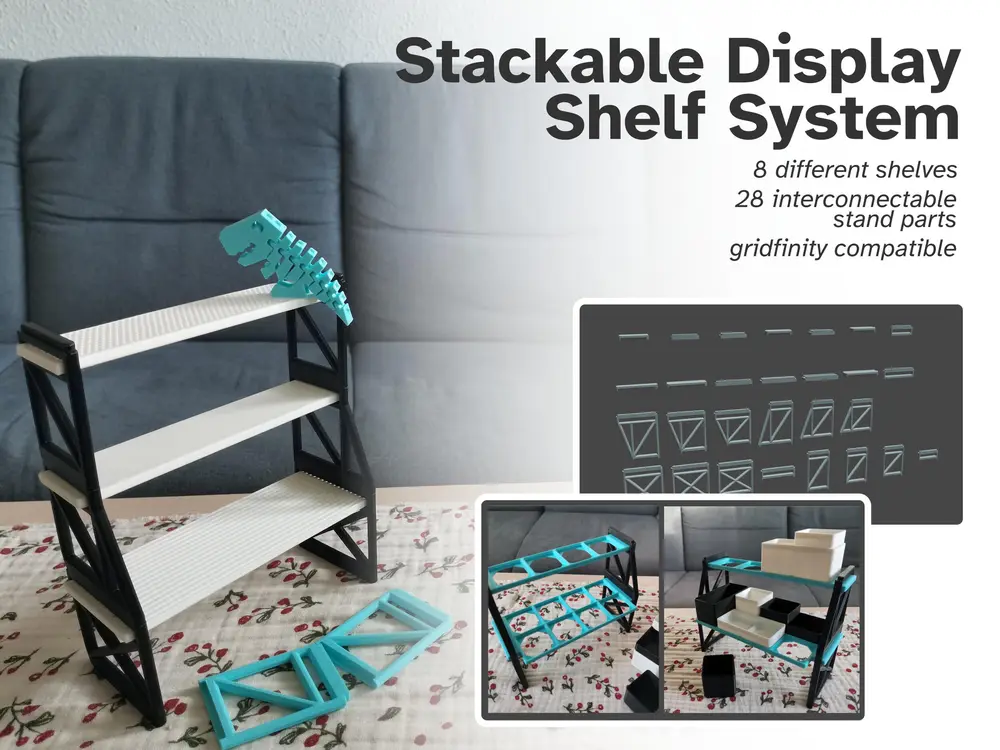

Stackable Display Shelf System (Gridfinity compatible)

Streamline your display or gridfinity setup with the Stackable Display Shelf System! Easy to print and assemble, just stick the pieces together!Designed for filament conscious printing, this system allows for multiple configurations, making it perfect for a variety of uses.

Choose from 28 different interconnectable stand parts and 8 different shelf parts.

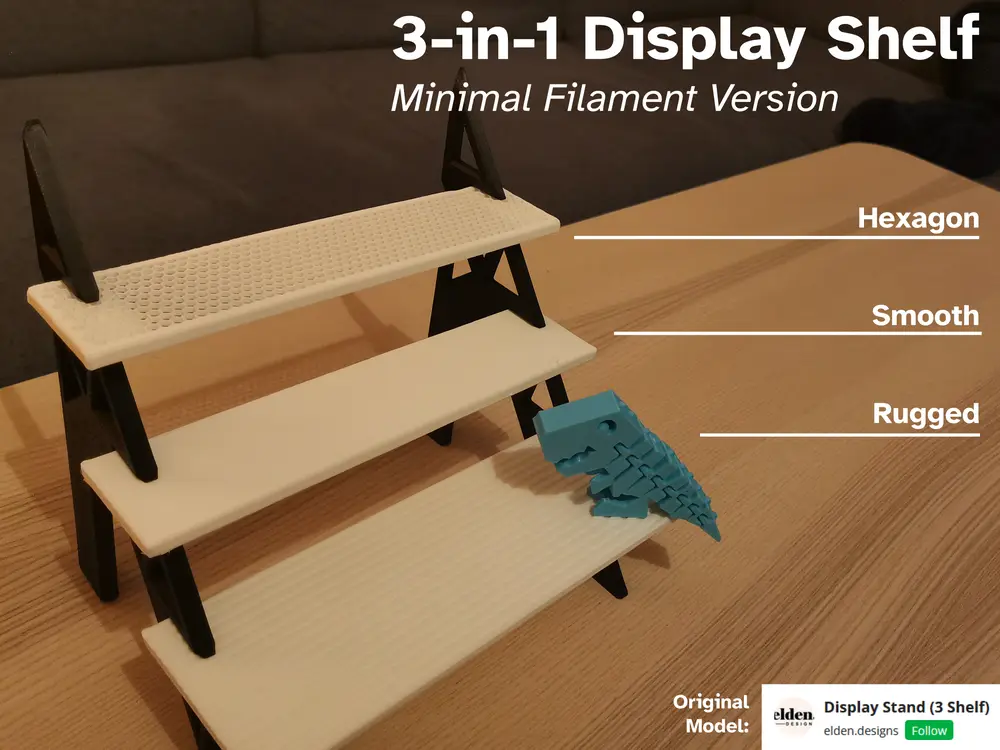

The shelves are intercompatible with the 3-in-1 Display Shelf.

Parts to print

Each ‘stack’ needs

• 2x base
• 1x shelf

If you want to save filament, i recommend the hexagon shelves.

The short gridfinity shelf is 4x1 and the long shelf is 4x2. For 80mm high bases the sensible maximum is 7U, for 90mm 8U and for 100mm 9U. There is space for more, but accessing them gets cumbersome. The gridfinity bins in the photos are 2U and 5U.

Attribution

This model was originally based upon the Display Stand (3 shelf) by elden.designs. For this model, only the dimensions of the shelves are still shared with the model by elden.design.

The gridfinity shelves are based upon the gridfinity minimal magnetic baseplate by Jools.

Size

• Short Base:  57x(26/80/90/100)x7 mm
• Short Feet:   57x(10/22)x7 mm
• Short Cap:   57x10x7 mm
• Short Shelf: 45x6x200 mm

• Long Base:   82x(26/80/90/100)x7 mm
• Long Feet:   82x(10/22)x7 mm
• Long Cap:    82x10x7mm
• Long Shelf:  70x6x200 mm

Supports

Normal (not tree) supports are needed for the base models. These are very small and easy to remove and only needed for the click-together part.

3D Printing Settings

Layer Height: 0.2 mm Infill: 15%

Update Log

[13.12.24] - adds connector caps & feet

[09.12.24] - adds 26mm base parts, adds 10 & 22mm feet parts, adds 10mm cap parts

[05.12.24] - adds 90 & 100mm version of all base parts

[06.01.25] - adds gridfinity shelves
