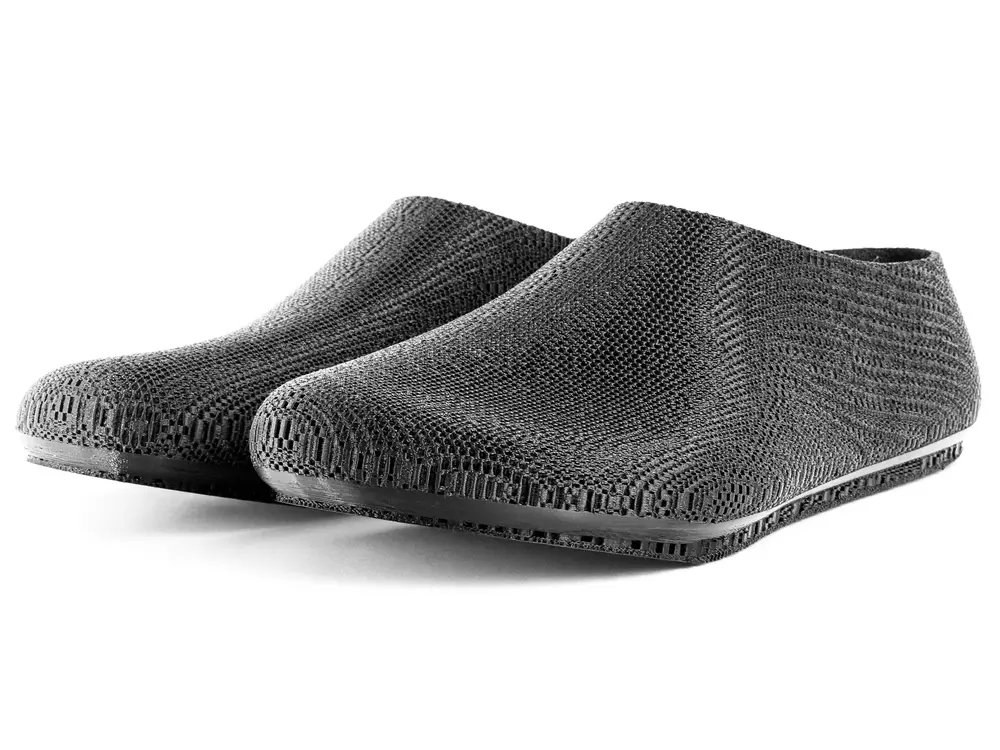

Taka shoes

Use TPU, 0.4 nozzle

EU sizes conversion chart

AnycubicSlicer / Bambu Studio / Orca Slicer settings:

Global, Taka_1, Taka_3:

- layer height: 0.2mm

- line width sparse infill: 0.6mm

- line width walls: 0.5mm

- wall loops: 0

- top shell layers: 0

- bottom shell layers: 0

- infill density: 62%

- infill pattern: Grid

- infill anchor: 1000 (unlimited)

- max infill anchor: 1000 (unlimited)

- infill direction: 45°

- infill/wall overlap: 90%

- detect narrow internal solid infill: no

- speed sparse infill: 18 mm/s

- reduce infill retraction: no

- enable support: no

- brim: outer and inner, gap 0mm

Taka_2:

- walls: 12

- object flow ratio: 1.2

Taka_4:

- line width sparse infill: 0.4mm

- infill density: 25%

- infill pattern: rectilinear

- infill direction: 0°

Taka_5:

- line width sparse infill: 0.4mm

- infill density: 25%

Taka_6:

- object flow ratio: 1.2

- infill density: 100%

- infill pattern: rectilinear

- infill direction: 0°

Taka_7:

- infill density: 99%

- infill direction: 0°

Taka_8:

- line width sparse infill: 0.3mm

- object flow ratio: 2

- infill density: 80%

- infill pattern: triangles

Taka_9:

- walls: 12

Filament:

- Retraction: 1.8mm

- Wipe: no

- Z hop: 1.2mm, Normal type

- Max volumetric speed: 2.5 mm^3/s

- Temperature: 215°C - 225°C

---
