Description

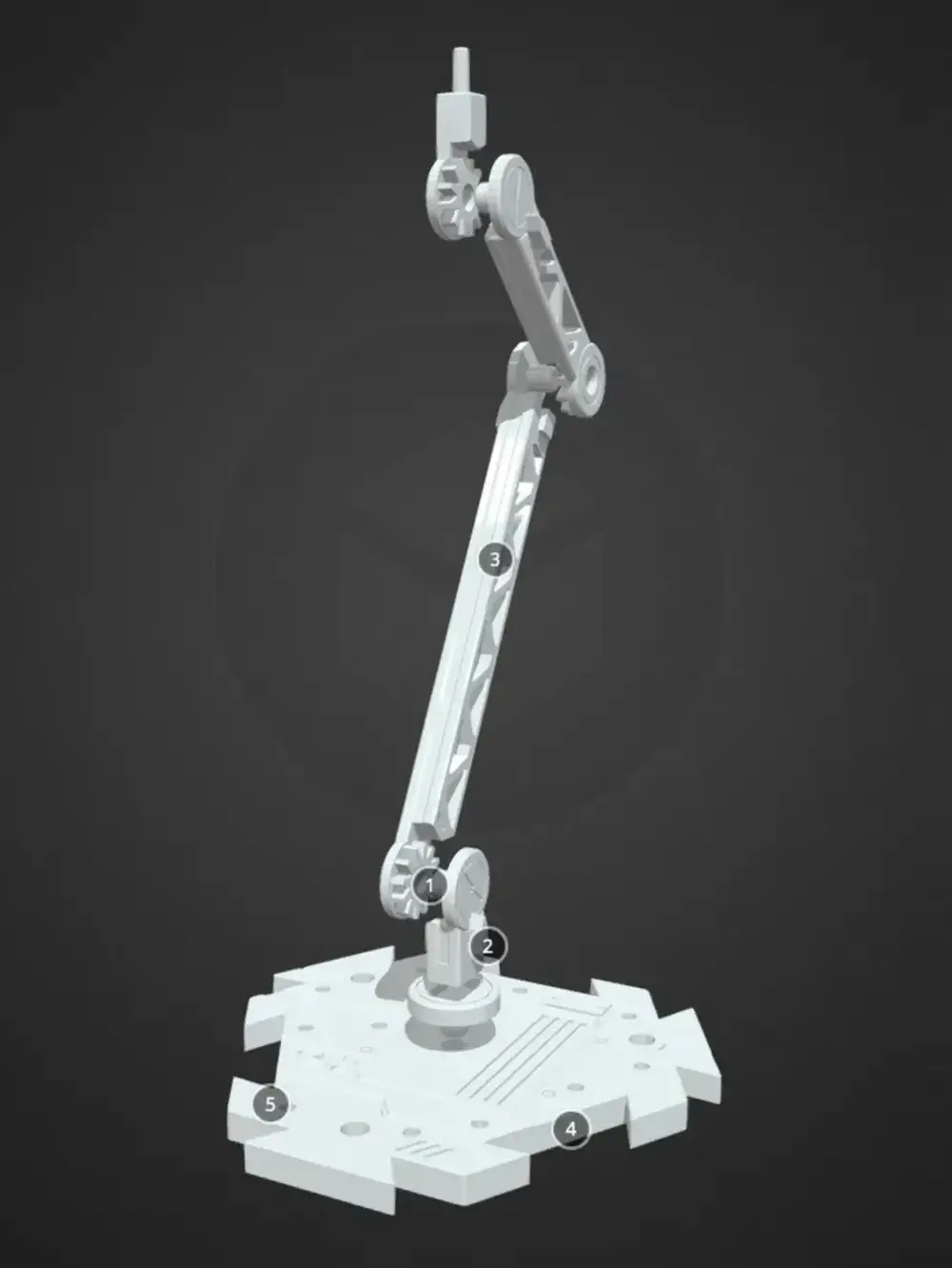

Customizable action base / stand for mecha with a built-in locking pin for easy rotation and locking of the stand.
PDF assembly instructions included in the .zip file.
IMPORTANT
Before printing all the parts, print the test pieces.stl first and follow below to adjust tolerances.
You will find the locking peg printed fused with the body due to the close proximity of the parts to each other. In Anycubic Slicer Next, please adjust your settings/profiles to below before printing.
- Seam position: back
- Slice gap closing radius: 0
- Y-Y contour compensation: -0.3 (if you find it too loose, reduce this value by 0.01)
Tags
License
Documentation
PDF
XF Action Base - Assembly Guide.pdf
925.06KB
