三合一象棋和五子棋&收纳棋盘 / chess&xiangqi&chessboard box

简介：

    这是一个迷你的三合一象棋和五子棋，铰链收纳棋盘，迷你省时省料，无需支持，棋盘一体打印（当然棋盘也有分体打印后用耗材组装的配置）😊。

说明：

    棋盘：

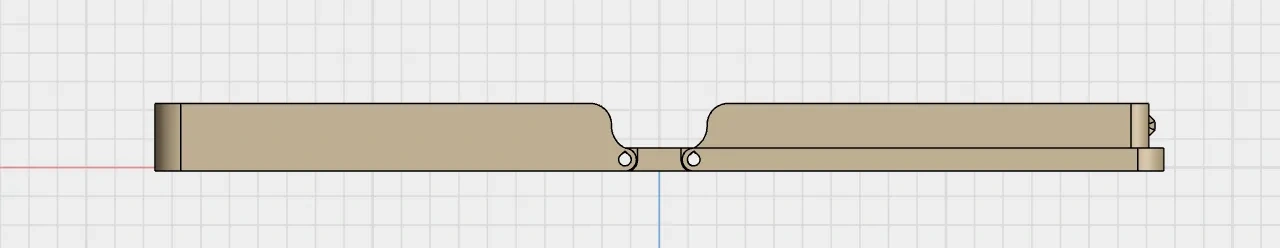

       1、双铰链设计：展开后可平整的作为棋盘使用，外面是国际象棋棋盘，里面是中国象棋棋盘；

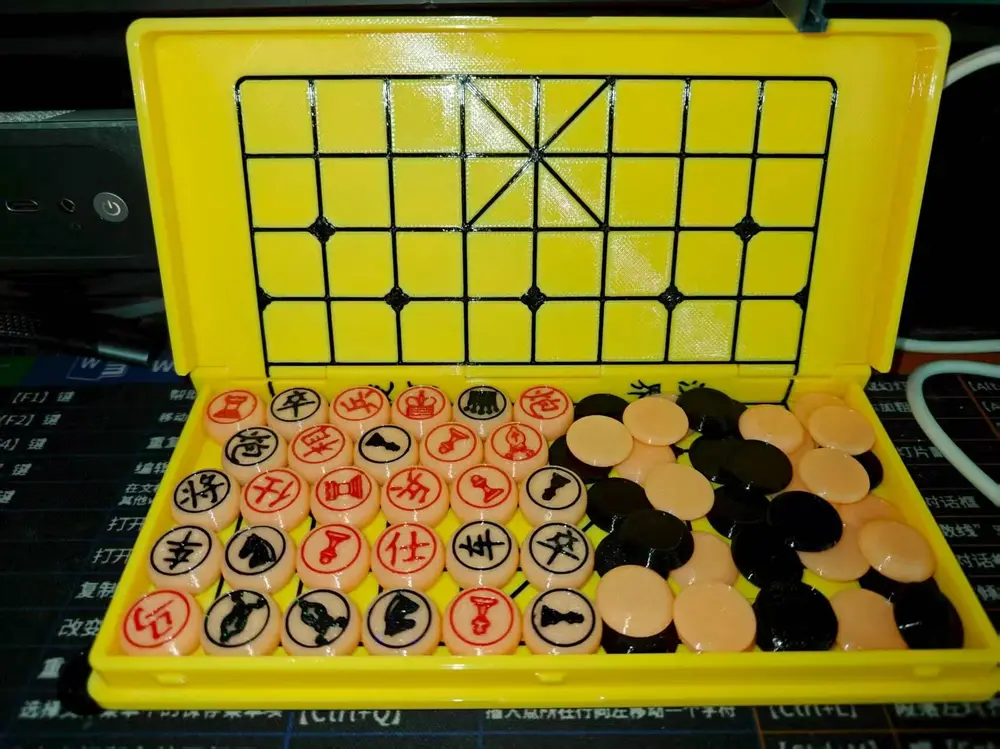

       2、折叠收纳盒：折叠后可收纳棋子成为一个棋盒，由卡扣来锁住，盒外有纹理便于打开；

       3、有一体打印棋盘和分体打印棋盘配置：一体打印棋盘无需其他操作打完即可使用，分体棋盘铰链处留有2mm孔洞，在此孔洞中穿入一根176cm的耗材即可。

     棋子：

       1、双面设计：一面中国象棋一面国际象棋；

       2、象棋图案：非红黑色棋面同字或同图案直接换色红黑棋子文字或图案均不同设计；

                    中国象棋字面，参照《中国象棋竞赛规则》中红黑棋子的规范文字设计；

                    国际象棋图案，参照电子棋盘、在线对弈等国际大型平台规范（如Chess.com等）图符做的平面设计。

       3、五子棋：按棋盘大小设计

打印建议：

    耗材PLA/PETG等不限，PLA以外材料打印前一定烘干；

    切片时必须墙生成器必须选 Arachne；

    建议红黑子一盘打印反而省时省料；

    没有精准调校过自己打印机的，建议开0.05-0.1的象脚补偿避免打印成品铰链粘连；

    如果你对你热床长期不清理维护，那么建议打印棋子时打印板涂胶。

    不可以缩小打印，否则图案显示不全，棋盘盒强度不够。

Introduction:

This is a mini three-in-one chess set combining chess and gomoku. It features a hinged storage board, which is mini - sized, time - saving, and material-saving. It doesn't require additional support, and the board can be printed as a single piece (of course, there is also a configuration where the board is printed in parts and then assembled with consumables). 😊.

Instructions:

 The Board:

1. Double - hinge design: When unfolded, it can be used flat as a chessboard. The outer side is a chessboard for Western chess, and the inner side is a chessboard for Chinese chess.
2. Foldable storage box: When folded, it can store chess pieces and become a chess box. It is locked by a buckle, and the outside of the box has a texture for easy opening.
3. There are configurations of one-piece printed board and split-piece printed board: The one-piece printed board can be used directly after printing without any other operations. For the split-piece printed board, there are 2mm holes at the hinge positions. You just need to thread a 176 - cm - long consumable through these holes.

Chess Pieces:

1. Double-sided Design: One side is Chinese chess, and the other side is chess.
2. Chess Patterns: For non-red and black chess pieces, the same characters or patterns are not simply recolored. The characters or patterns of red and black chess pieces are designed differently.
3. For the Chinese chess characters, they are designed referring to the standard characters of red and black chess pieces in the "Rules of Chinese Chess Competitions".
4. For the chess patterns, they are designed as graphic designs referring to the standards of international large platforms such as electronic chessboards and online games (e.g., Chess.com).
5. Gobang Pieces: Designed according to the size of the chessboard.
6.

Printing Suggestions:

1. Consumables such as PLA/PETG are acceptable. Materials other than PLA must be dried before printing.
2. When slicing, the wall generator must be selected as Arachne.
3. It is recommended to print the red and black chess pieces in one plate, which saves time and materials.
4. For those who haven't precisely adjusted their printers, it is recommended to set an elephant's foot compensation of 0.05 - 0.1 to avoid the adhesion of the printed hinge.
5. If you haven't cleaned and maintained your heated bed for a long time, it is recommended to apply glue to the printing plate when printing chess pieces.
6. Do not print in a reduced size, otherwise the patterns will not be fully displayed, and the strength of the chessboard box will be insufficient.
