乐仙乐居学习椅靠背连接件/Study Chair Backrest Connector

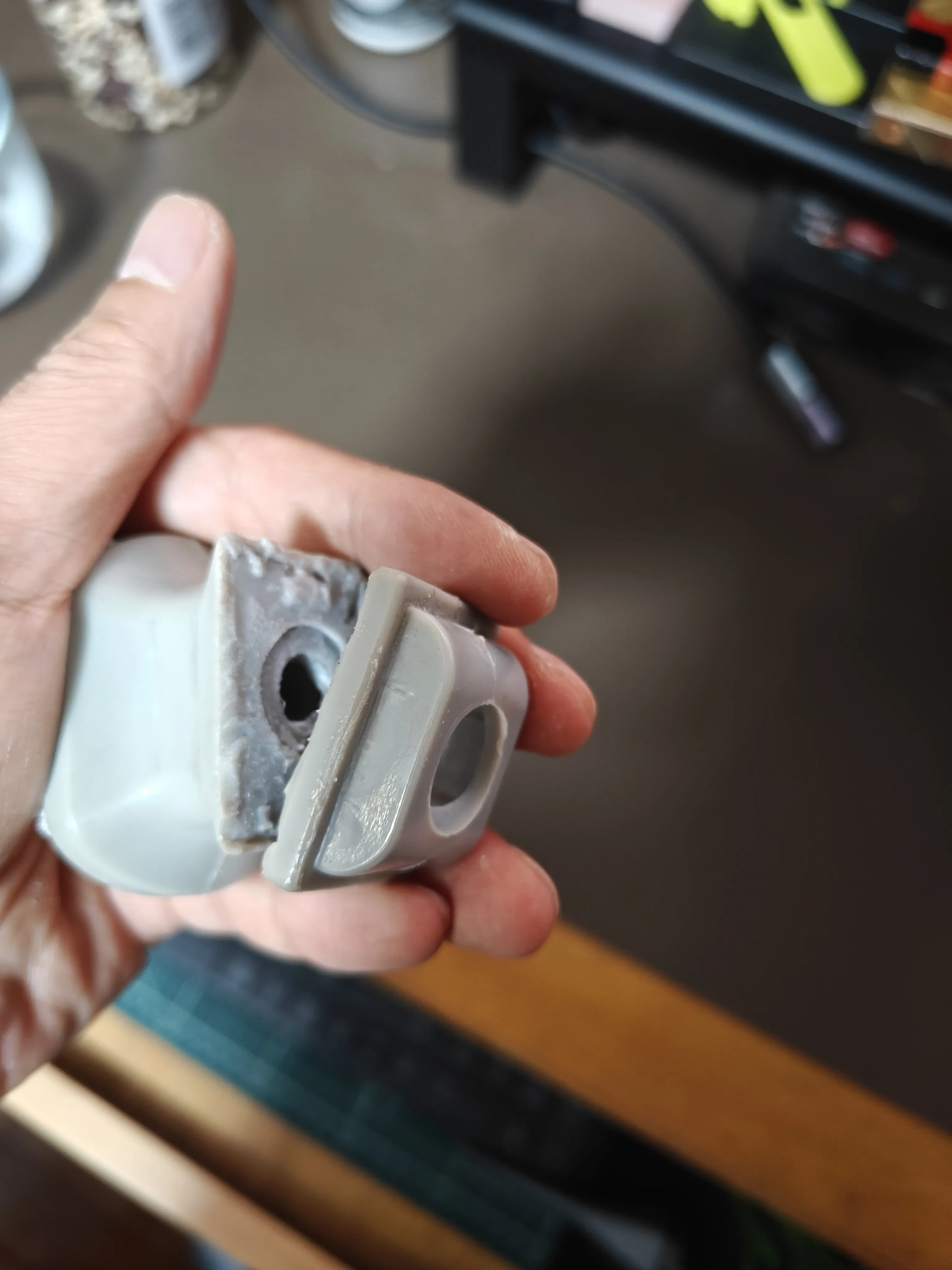

孩子的乐仙乐居学习椅靠背连接件断了，网上搜了下一个就得20元左右，然后决定手搓。

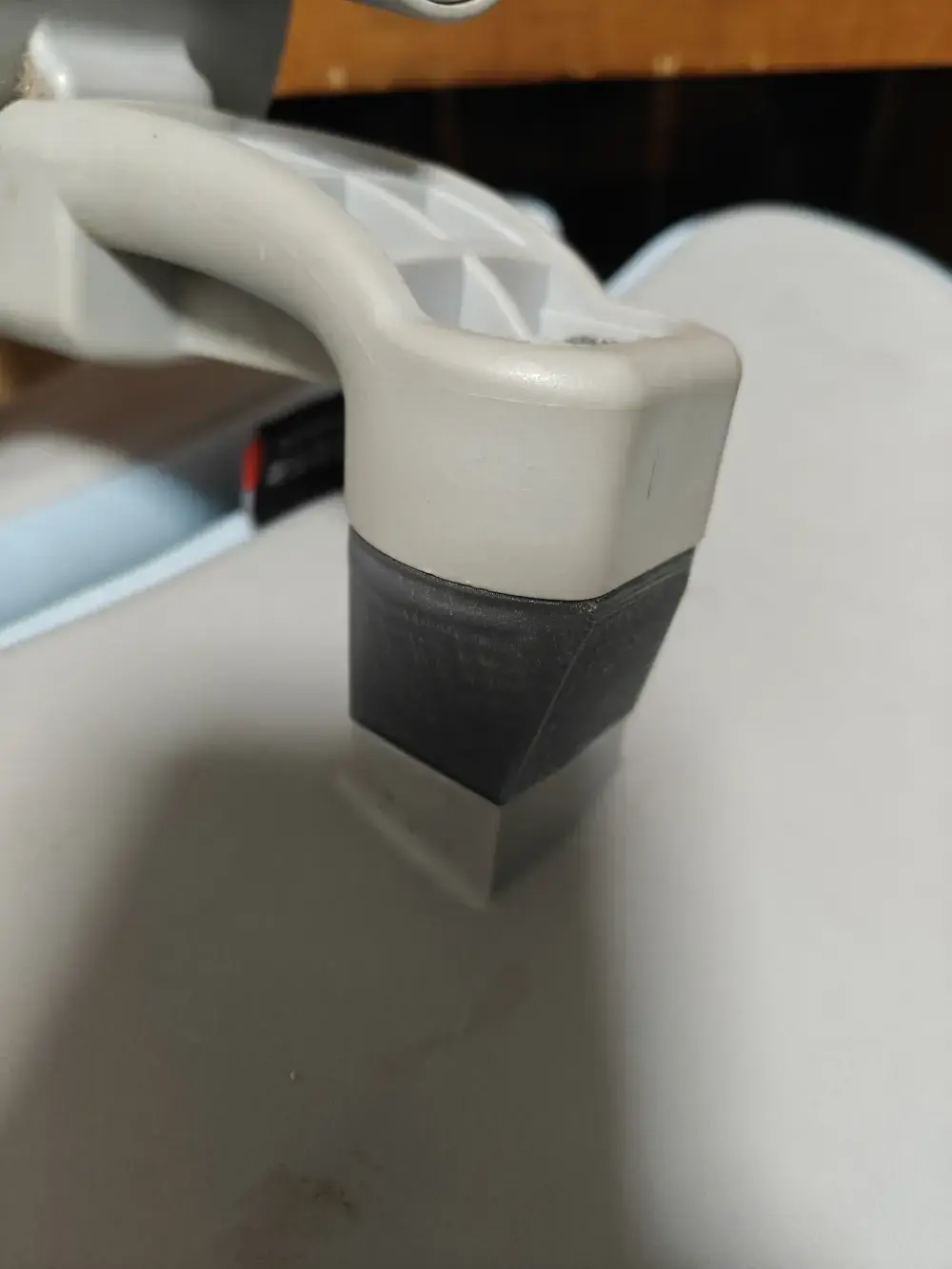

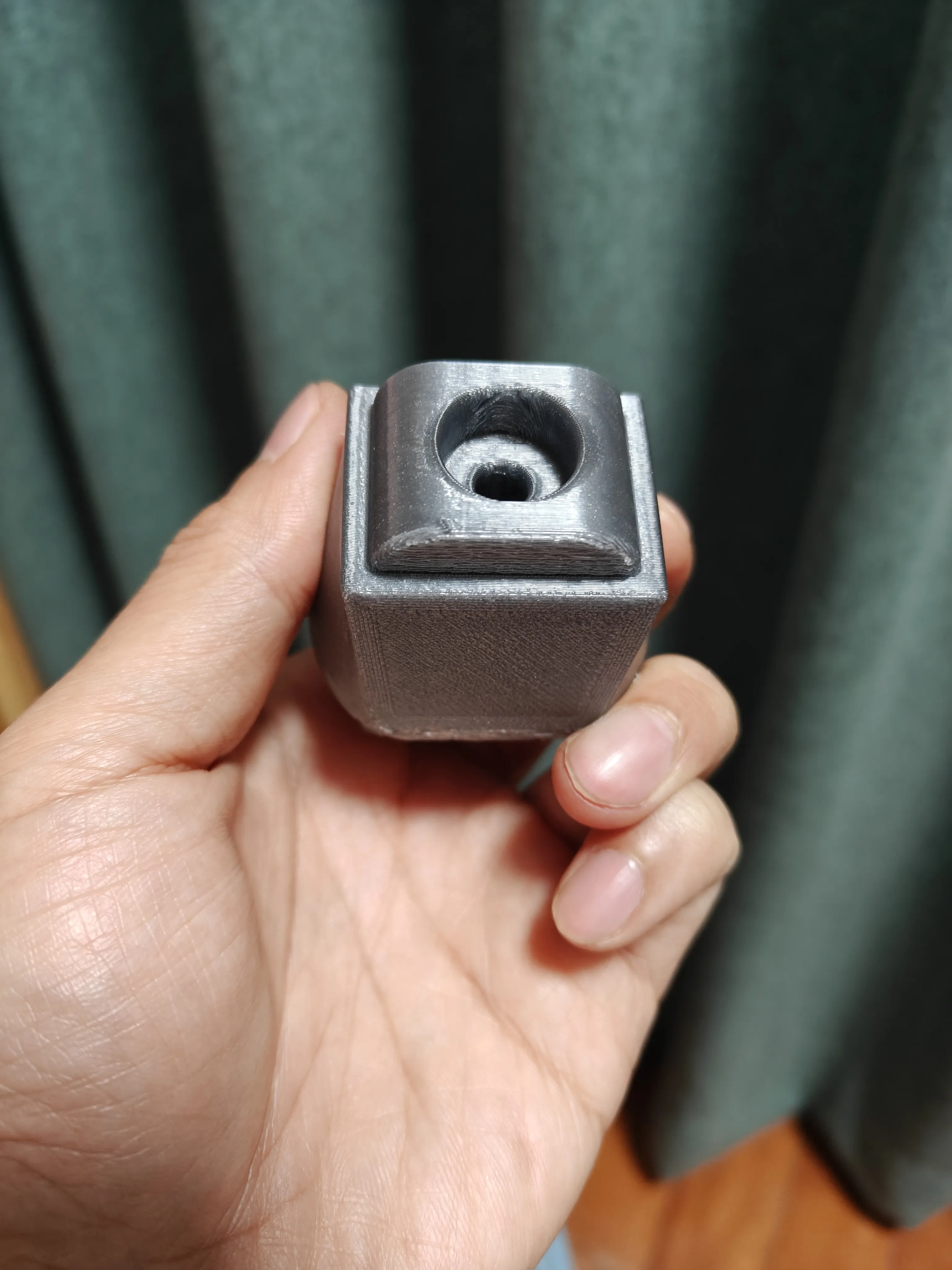

该模型可以完美平替原装零件，用原安装螺丝按原连接件安装方式安装即可。

The backrest connector of my child's Lexian Leju study chair broke. I searched online and found one costs around 20 yuan, so I decided to make it myself. This model is a perfect replacement for the original part. It can be installed using the original mounting screws in the same way as the original connector.

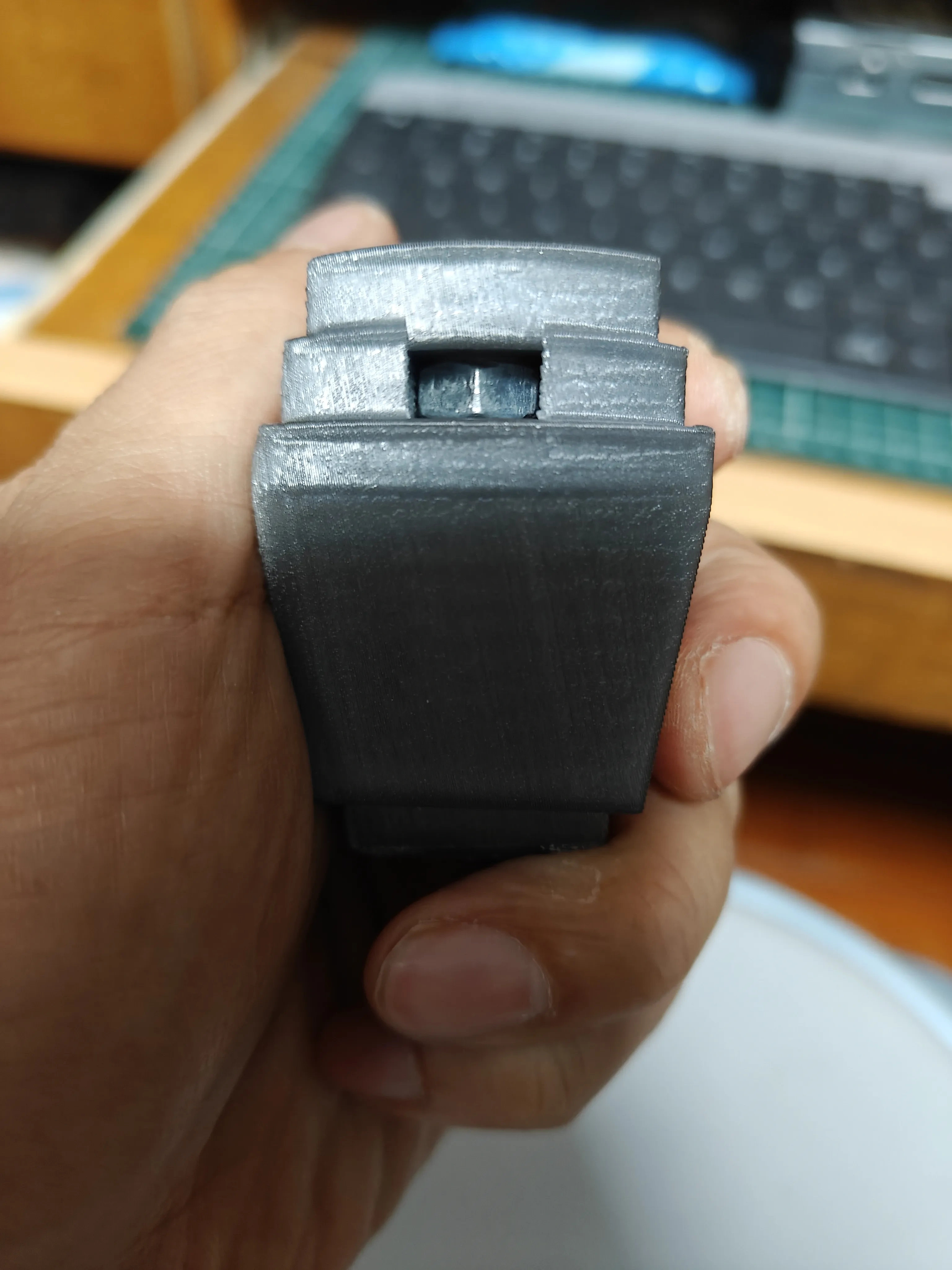

注意：除打印件外需要2个M6螺母，下图侧面孔里需放入M6螺母（该螺母可以从原坏了的连接件中拆除）

Note: Two M6 nuts are required in addition to the printed part. An M6 nut needs to be placed in the side hole shown in the figure (the nut can be removed from the original broken connector).

打印建议：不要更换打印配置中的支撑及打印件方向，建议PETG以上韧性材料打印。

Printing recommendation: Do not change the supports and part orientation in the print settings. It is recommended to print with materials of toughness equal to or better than PETG.
