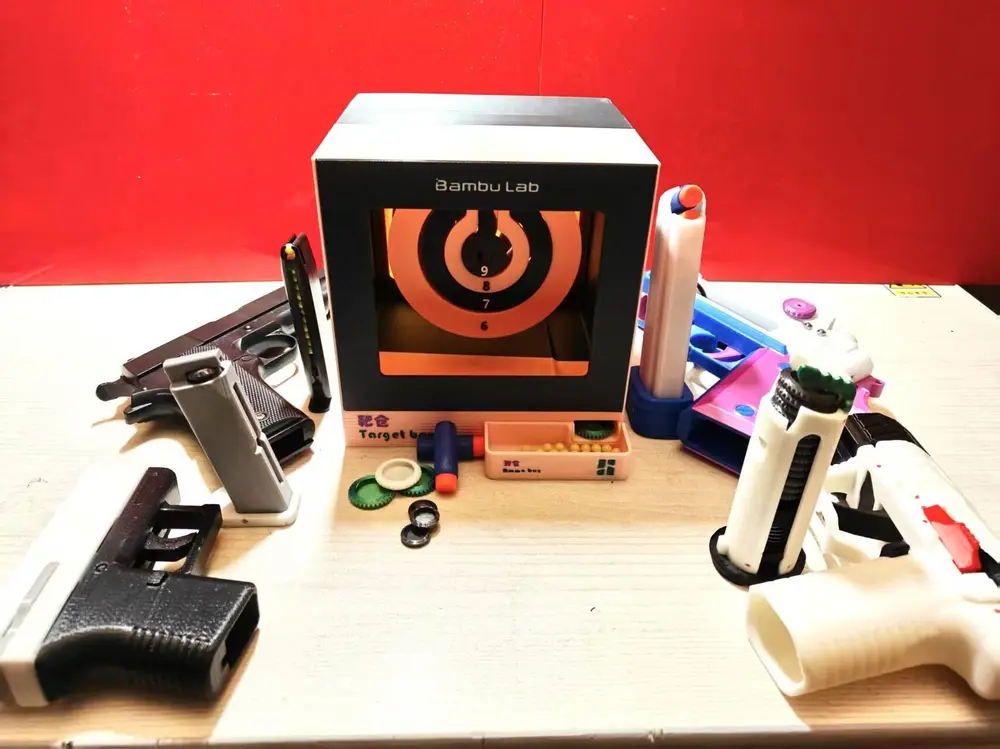

全能靶箱/All-purpose target box
打印了很多射击类玩具了，每天家里小朋友打的小软弹、飞盘弹、BB弹到处是很苦恼，没有找到一个合适练习射击同时又类似子弹的收集器盒子的多功能靶子，于是设计了此模型。考虑到我手里A1mini的大小，以及避免过多的耗材消耗，最终设计为180mm以内的尺寸。（或者你可以放大打印😄，但不建议缩小那样他会很脆弱）
A lot of shooting toys have been printed. Every day, the small soft bullets, flying disc bullets, and BB bullets that the children at home shoot are everywhere, which is quite annoying. I haven't found a multi-functional target that is suitable for practicing shooting and also serves as a collector box similar to bullets. So, I designed this model. Considering the size of the A1mini in my hand and to avoid excessive consumption of materials, the final design size is within 180mm. (You can print it enlarged 😄, but it is not recommended to print it reduced as it will be very fragile.)

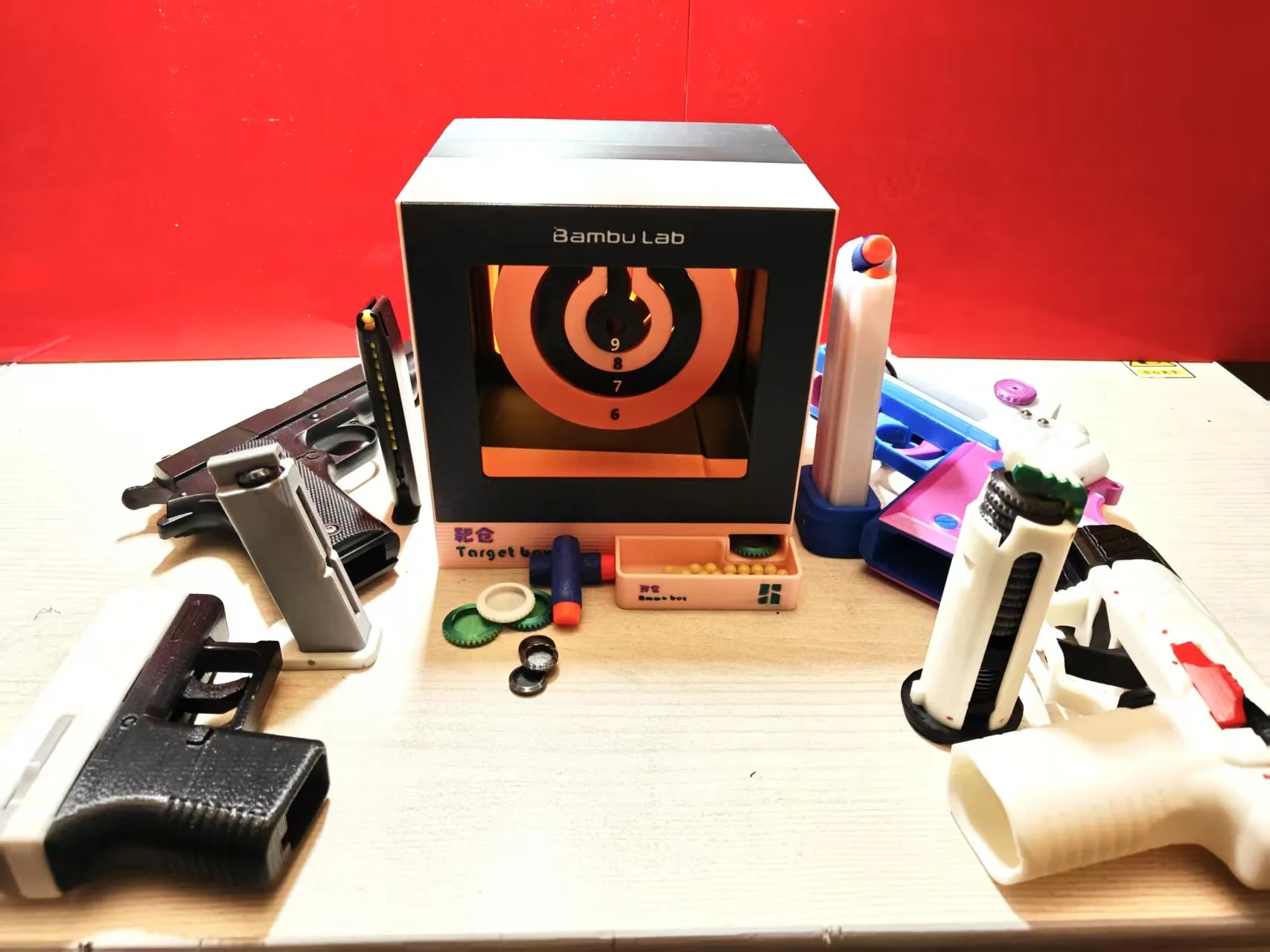

完整模型很简单5个部件组成：
1、靶仓：仓内底部设计了坡度，如果是BB弹类的圆形弹丸可从仓口自动滚出。
仓内设计了前后两套靶杆孔位，可根据自己射击器强度需求选择靶杆插前面或者后面一对孔（力量强建议插后面），孔内有凹槽设计可以卡住靶杆。
2、靶子：直面冲击力最大，如果你的射击器力量很大建议最少PETG打印，或者考虑TPU😄。（有多色打印配置可选）
3、靶杆：一边先插入靶仓小圆孔，然后穿上所有靶子零件最后从靶仓另一边孔穿出，靶杆两端设计有凸点与靶仓凹槽对应卡住即可。
4、前面板：卡入靶仓前面槽位胶水固定即可，有一定的防止子弹反弹，以及很好的装饰性。（有多色打印配置可选）
5、弹仓：插在靶仓口收集BB弹类球形子弹或者飞盘子弹，软弹无法装入。
The complete model is simple and consists of 5 components:
1. Target magazine: There is a slope designed at the bottom of the magazine. If it is a round projectile like a BB bullet, it can roll out of the magazine opening automatically. There are two sets of target rod hole positions, front and back, designed inside the magazine. You can choose to insert the target rod into the front or the back pair of holes according to the strength requirement of your shooter (it is recommended to insert it into the back holes if the power is strong). There are groove designs in the holes to hold the target rod.
2. Target: It faces the greatest impact force. If the power of your shooter is very strong, it is recommended to print it with at least PETG, or consider TPU 😄. (There are multi - color printing configurations available.)
3. Target rod: Insert one end into the small round hole of the target magazine first, then thread through all the target parts and finally pass through the hole on the other side of the target magazine. There are bumps designed at both ends of the target rod, which can correspond to the grooves of the target magazine and be fixed.
4. Front panel: Just insert it into the front slot of the target magazine and fix it with glue. It can prevent the bullet from rebounding to a certain extent and has good decorative properties.(There are multi - color printing configurations available.)
5. Bullet magazine: Insert it into the target magazine opening to collect spherical bullets like BB bullets or frisbee bullets. Soft bullets cannot be loaded.
可选增强部件：

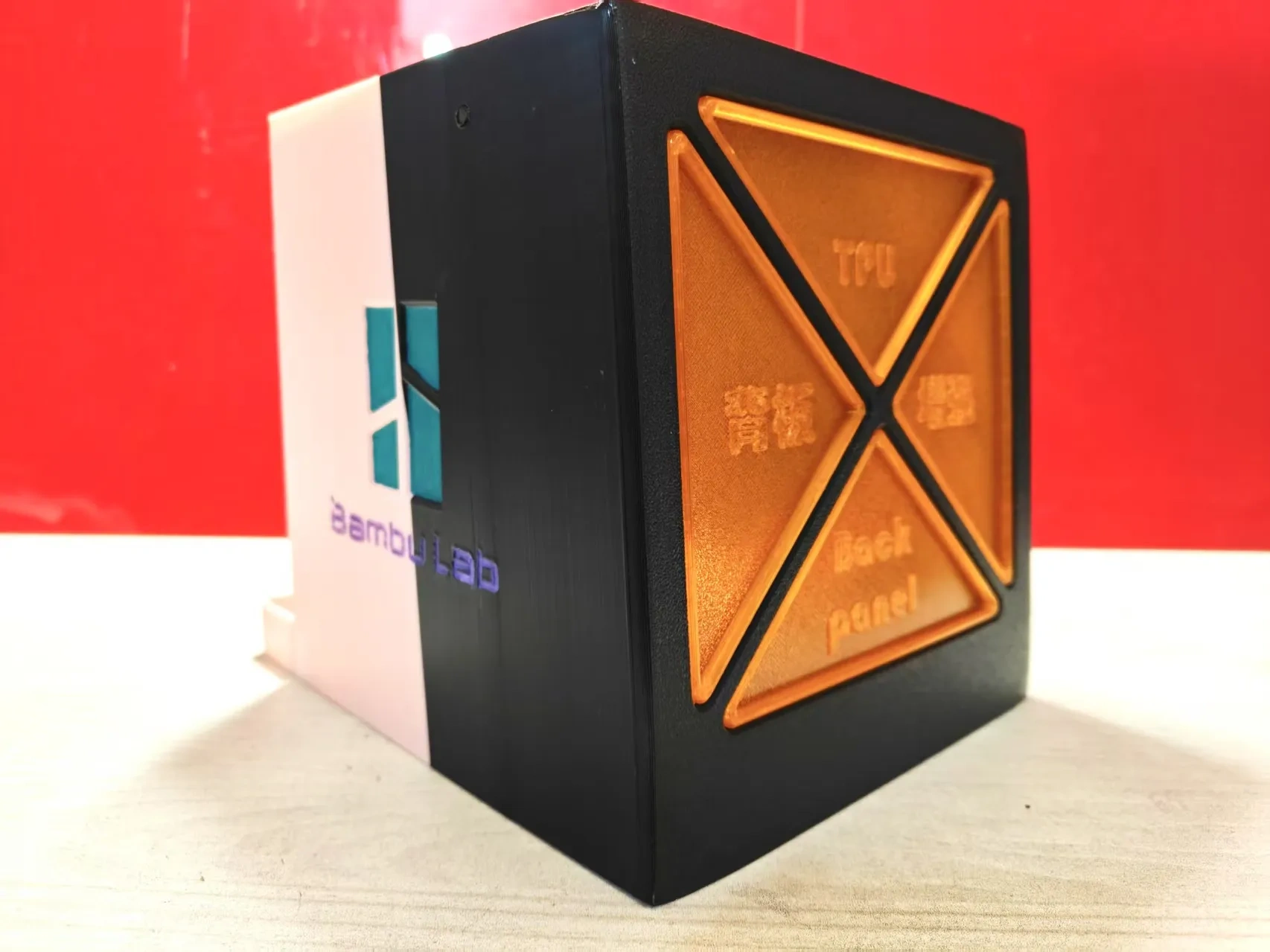

另有TPU增强靶仓，抗子弹冲击力更强，两个部件改版仓体和TPU内背板，可用TPU打印内背板后装在增强靶仓的背后卡槽处胶水固定，不过我没有那么大力的射击器未实际验证，理论应该可行，或者我曾想靶子是否TPU打印也有奇效？😄为有需要的人预留的设计🙂。这么大力量的家伙应该会很危险哦😄。（第三项增强打印配置内）
Optional enhanced components:
There is also a TPU enhanced target bin, which has stronger resistance to bullet impact. There are two modified parts, the bin body and the TPU inner backplate. The inner backplate can be printed with TPU and then installed in the slot behind the enhanced target bin and fixed with glue. However, I don't have a shooting device with that much power, so I haven't actually verified it. Theoretically, it should be feasible. Or I once thought if printing the target with TPU would also have a miraculous effect? 😄 This is a design reserved for those in need. Such a powerful thing should be quite dangerous. 😄 (Within the third enhanced printing configuration)
打印及使用注意：
1、虽然模型预留有公差0.2mm,因大家打印机耗材不同建议先打印TEST盘的测试件先测试装配松紧，仅需调整靶杆的外轮廓补偿即可，过松调整成负数，过紧调整成负数，建议已0.05为单位调整。（大部分人应该用不上测试件我试了PETG、PLA都可正常穿过，稍微紧时可以来回拉动几次就好了）
2、靶仓打印时建议涂胶水或加裙边避免大面积平面打印时翘边。（特别是用PETG打印时）
3、同时可根据你的射击器的力量增减壁厚来增加强度或者更换更具有韧性耗材来提高强度，受限与3D打印耗材，请勿近距离射靶会击碎部件或反弹伤人，请保持远距离1m以上射靶，注意安全使用。此模型为玩具类，仅供娱乐。
Printing and Usage Precautions:
1. Although the model has a reserved tolerance of 0.2mm, due to the different printer consumables among you, it is recommended to print the test parts of the TEST plate first to test the tightness of the assembly. Only the outer contour compensation of the target rod needs to be adjusted. If it is too loose, adjust it to a negative number; if it is too tight, also adjust it to a negative number. It is recommended to adjust in units of 0.05. (Most people probably don't need the test parts. I've tried both PETG and PLA, and they can pass through normally. When it's a little tight, you can pull it back and forth a few times and it will be okay.)
2. When printing the target magazine, it is recommended to apply glue or add a brim to avoid warping during large-area flat printing. (Especially when printing with PETG)
3. At the same time, you can increase or decrease the wall thickness according to the power of your shooter to increase the strength, or replace it with more ductile consumables to improve the strength. Limited by 3D printing consumables, do not shoot at the target at close range as it may shatter parts or bounce back and hurt people. Please shoot at the target from a distance of more than 1m. Use it safely. This model is a toy and is for entertainment only.
