长征10号回收场景 CZ-10 Recovery Diorama

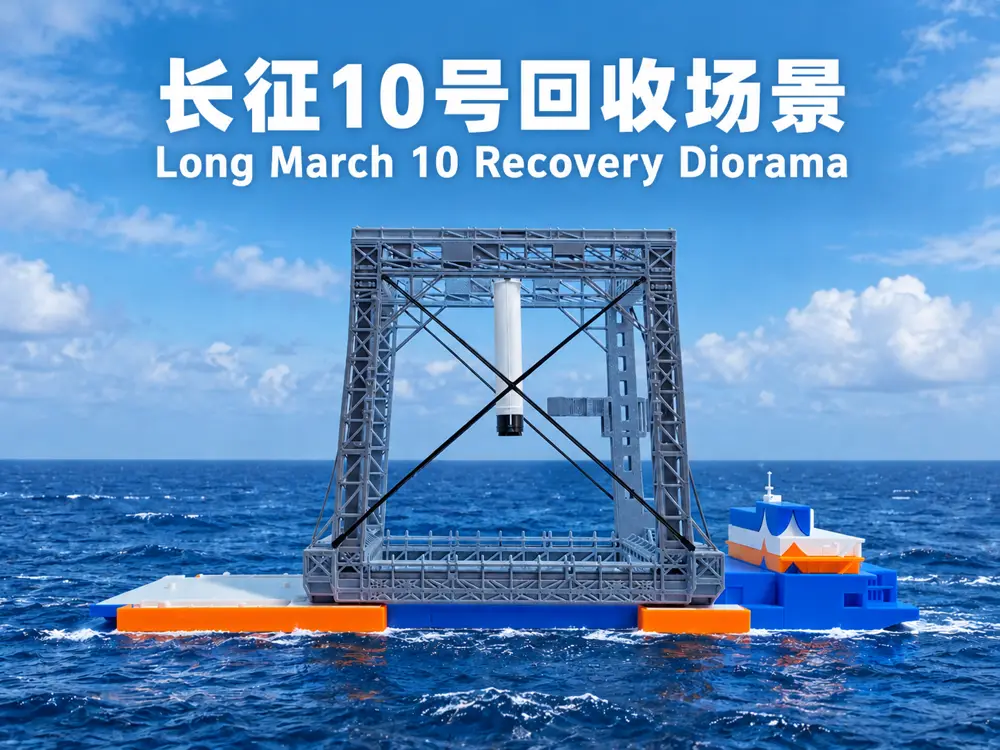

EN: This is a 1:400 scale model of the CZ-10 booster recovery diorama. The recovery ship is named Linghangzhe (领航者号, or Pathfinder), a recovery ship designed to catch and recover the CZ-10 (LM-10) rocket booster. The CZ-10 is China’s new-generation launch vehicle, featuring a reusable first-stage booster. It is designed to support a wide range of missions, including crewed flights to the space station and the Moon, as well as satellite deployment. The model includes a CZ-10 booster designed for diorama display, simulating the moment when the booster is just entering the catching system. No ACE is required. Glue is required for assembly.

The model has been modified to improve printability while retaining as much detail as possible. However, due to the large number of overhangs in some parts, you may notice minor sagging depending on your printer and filament. They can usually be easily removed with tweezers after printing.

ZH: 这是 1:400 比例的长征10号一子级回收场景模型。主体为领航者号回收船模型，该船用于捕获和回收长征十号 (CZ-10) 火箭助推器。长征十号（CZ-10）是中国新一代运载火箭，采用可重复使用的助推器设计。它将用于执行多种任务，包括载人前往空间站和月球，以及卫星发射等。模型包含一个用于场景展示的一子级模型，模拟一子级刚刚进入捕获系统的瞬间。打印无需 ACE，组装时需要使用胶水。

为了提高模型的可打印性，我对模型进行了优化，在尽可能保留细节的同时改善了打印效果。不过，由于部分零件存在较多搭桥，根据不同的打印机型号和耗材类型，打印后可能会出现少量下垂的情况。这些通常可以使用镊子轻松拔掉。

EN: I uploaded 2 print profiles

• Main: the main print profile with all the necessary components

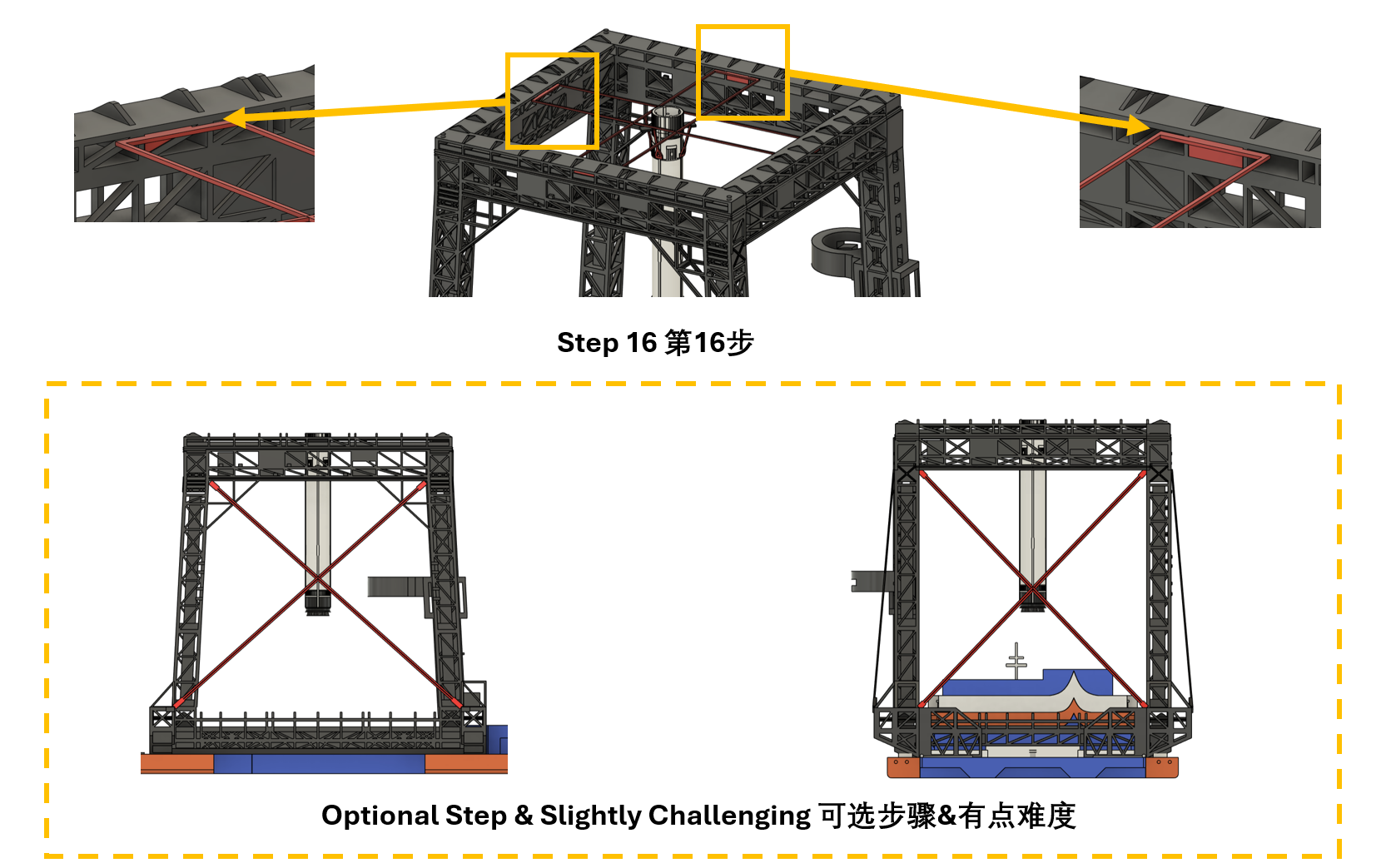

• Optional: the diagonal stay cables on the four sides of the net recovery system. It can be a little challenging to attach to the main model. I recommend using UV glue.

ZH: 我上传了2个打印配置

• 主体：包含所有主要零件
• 可选：网系回收系统四边的斜拉索。组装有一定难度。我推荐使用UV胶。

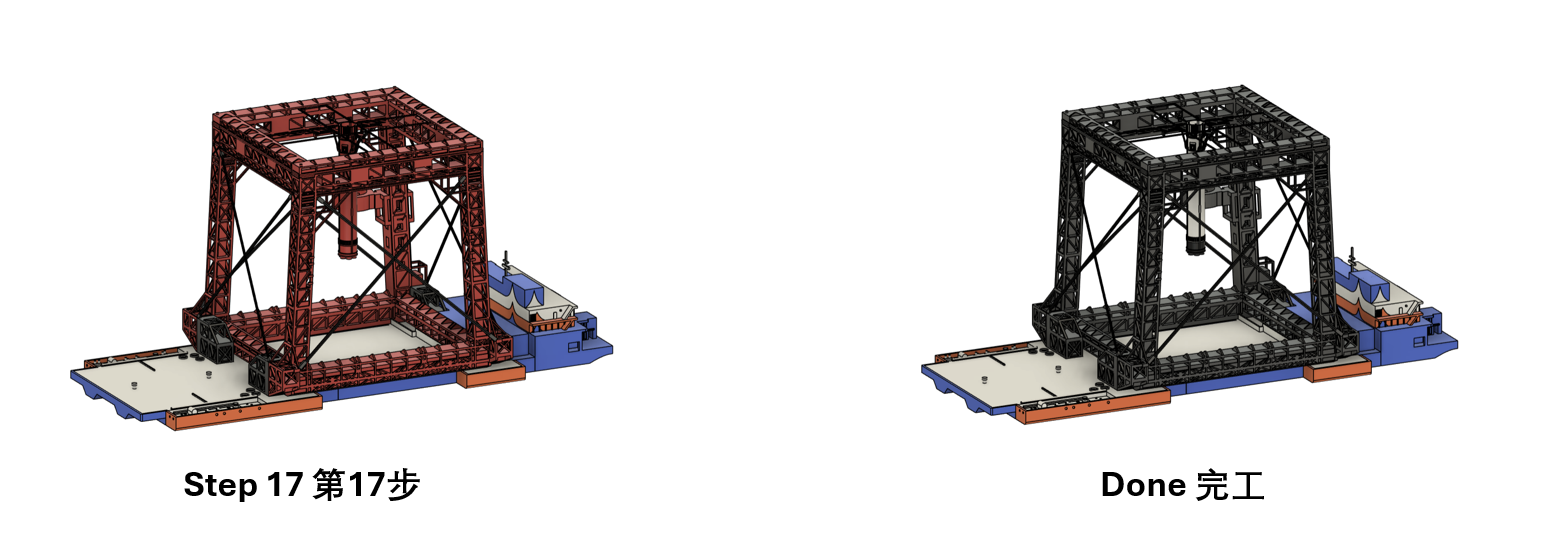

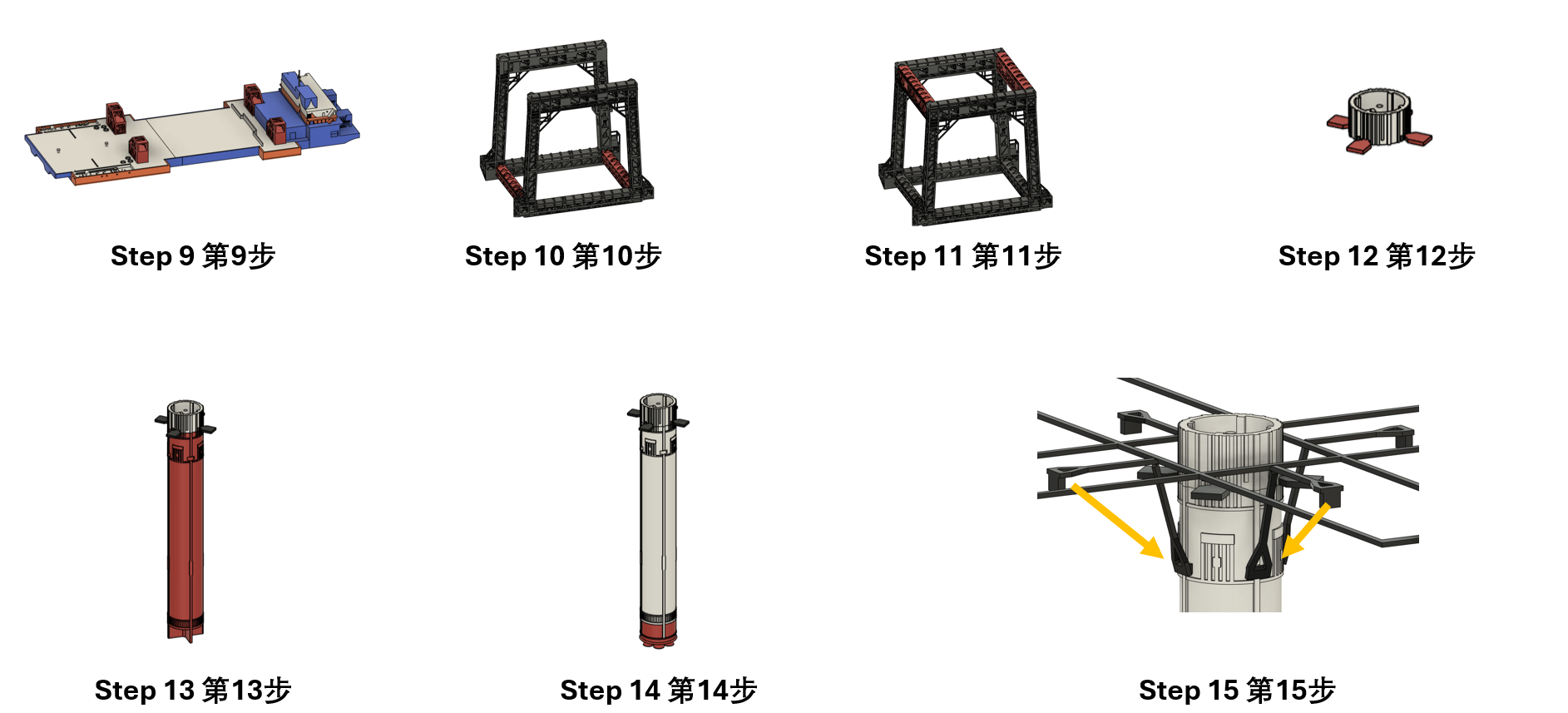

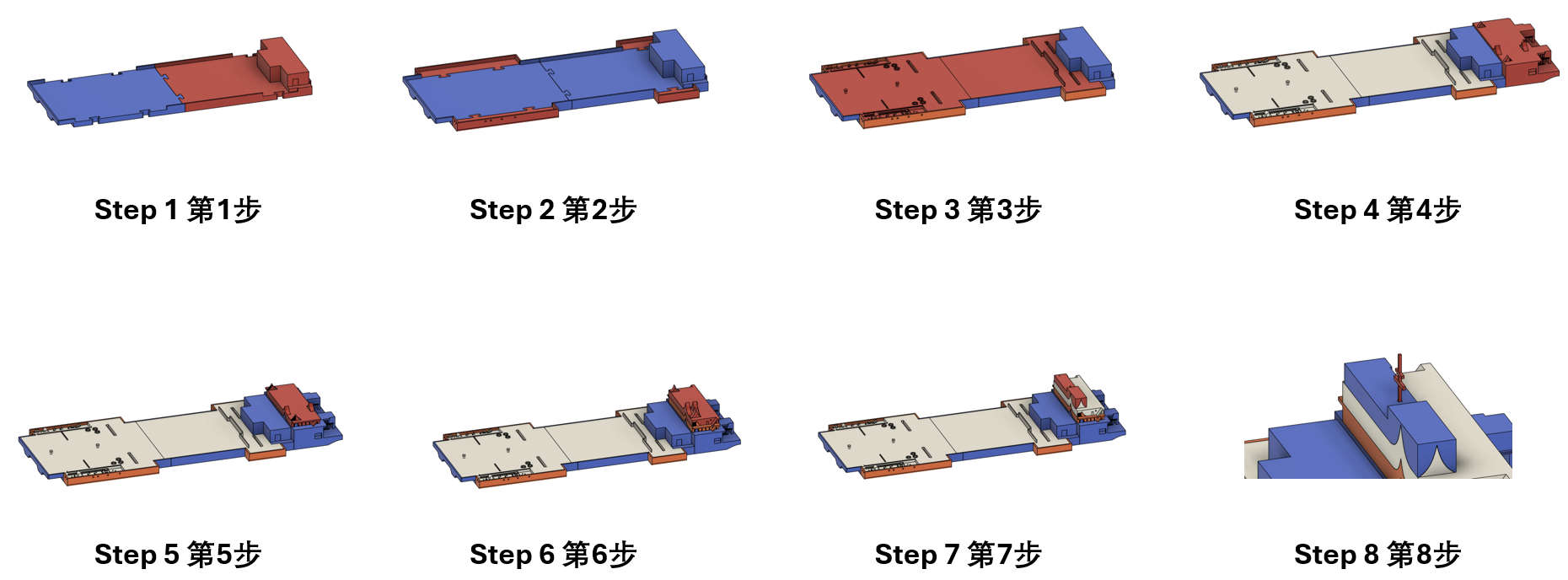

Assembly Instructions 组装说明
