Anycubic Kobra S1 Max – IKEA SKÅDIS Side Mount

Transform the unused side area of your Anycubic Kobra S1 Max into a practical modular storage area using two IKEA SKÅDIS pegboards.

This project was designed specifically around the geometry of the Anycubic Kobra S1 Max and uses custom 3D-printed mounting components to attach the SKÅDIS panels to the printer without drilling or permanently modifying the printer enclosure.

The complete system consists of multiple 3D-printed components that work together as a single mounting system.

Modular construction

The system is assembled from several individual printed parts:

• Red parts – upper mounting hooks that hang over the upper edge of the Kobra S1 Max
• Gray parts – IKEA SKÅDIS panels
• Turquoise parts – mechanical joining brackets used to connect the SKÅDIS panels
• M3 hardware – screws and nuts used to secure the printed components to the SKÅDIS panels

The turquoise components are attached directly to the gray SKÅDIS panels using M3 screws and M3 nuts.

This creates a rigid connection between the individual SKÅDIS panels while keeping the system modular and easy to assemble or disassemble.

SKÅDIS configuration

The design is intended for two IKEA SKÅDIS panels.

Each panel:

202 × 220 × 6 mm

Combined assembly:

202 × 440 × 6 mm

The two panels are positioned side-by-side to create a larger continuous organizer surface.

Mounting concept

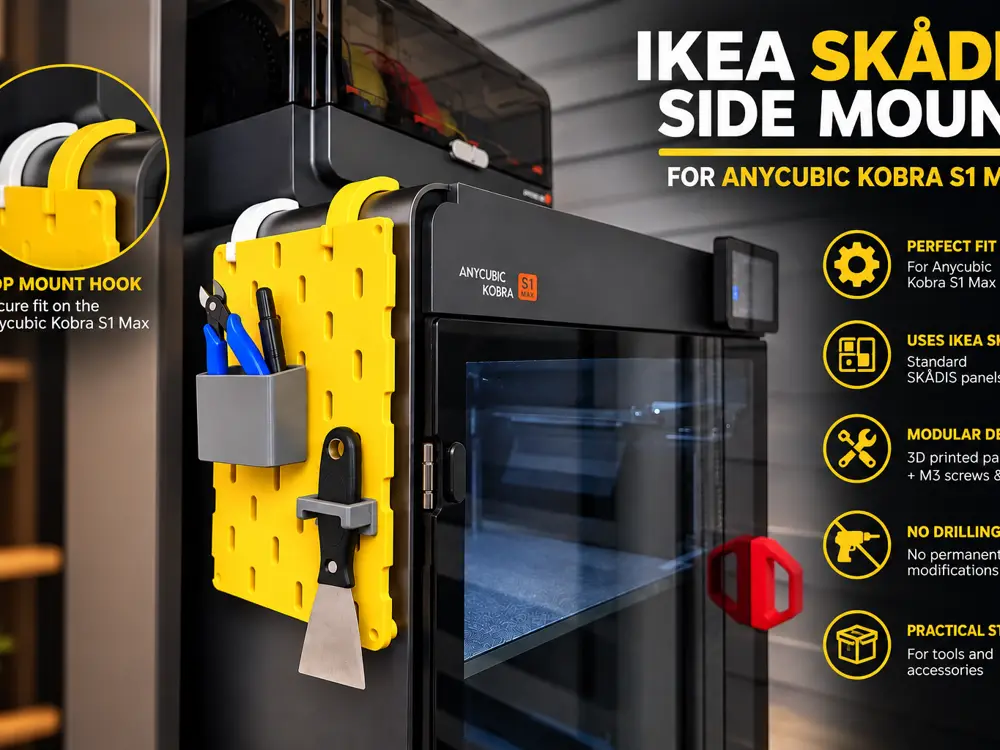

The complete assembly is suspended from the upper edge of the Anycubic Kobra S1 Max using the custom 3D-printed hooks.

No drilling or permanent modification of the printer is required.

The mounting concept allows the SKÅDIS system to be removed from the printer when required.

M3 hardware

The turquoise mounting components are secured to the SKÅDIS panels using:

• M3 screws
• M3 nuts

Designed for makers

The SKÅDIS system allows you to add a wide range of storage accessories around the printer:

• tool holders
• filament tools
• nozzle storage
• scraper holders
• pliers
• cutters
• Allen keys
• screwdrivers
• measuring tools
• small containers
• other IKEA SKÅDIS-compatible accessories

The major advantage is that the printer itself remains untouched while the side-mounted storage can be customized according to your needs.

Key Features

• Designed for Anycubic Kobra S1 Max
• Compatible with 2 × IKEA SKÅDIS panels
• Total organizer size: 440 × 202 mm
• Modular multi-part construction
• M3 screw + nut connections
• No permanent modification to the printer
• Removable mounting system
• 3D-printable mounting components
• Compatible with SKÅDIS accessories
• Designed for practical workshop organization
• Easy to assemble and disassemble

Required Parts

Printed parts

• Upper mounting hooks
• IKEA SKÅDIS panels
• Additional printed mounting components included in the model files

Not included

• M3 screws
• M3 nuts
•


Recommended Printing

For the mounting components, I recommend:

Material: PLA / PLA+ / PETG

Layer height: 0.20 mm

Walls: 4

Top/Bottom: 5–6 layers

Infill: 30–40%

For the hooks, I would personally recommend PETG if the printer will operate continuously at elevated temperatures or in a warm environment.

For normal workshop use, PLA+ should also work well, provided the surrounding temperature remains moderate.

Important

This model is designed specifically around the Anycubic Kobra S1 Max and the dimensions/configuration shown in the project.

The IKEA SKÅDIS panels are not included and must be purchased separately.

The mounting system is a custom 3D-printed solution and is not an official Anycubic or IKEA product.

SHARE YOUR PRINT

If this replacement helped you, please consider leaving a Like and Download.

If you print the model, please share a Make/Print photo and your feedback.

Your photos can help other users determine whether this replacement is suitable for their own bed.

Happy printing!
