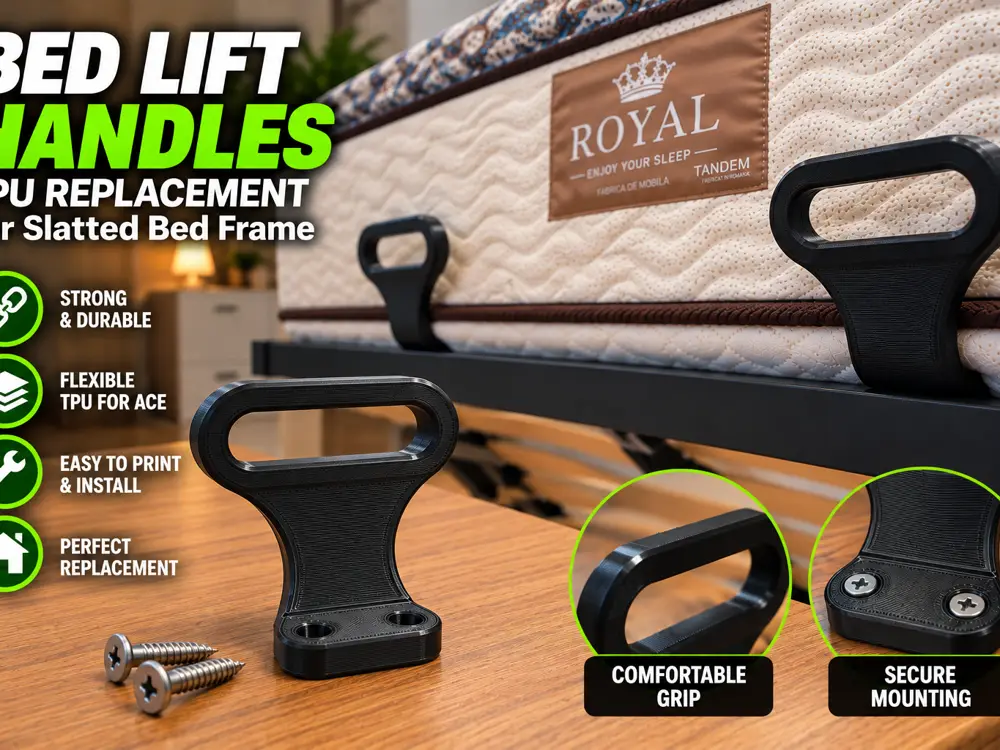

Bed Lift Handles – TPU Replacement for Slatted Bed Frame

A strong and flexible 3D-printable replacement handle for lifting a double bed slatted frame.

The original handles on my bed frame were made from a soft rubber-like material and eventually broke after several years of everyday use.

I designed this replacement handle using TPU for ACE / TPU 68D, providing a combination of flexibility, toughness and mechanical strength suitable for repeated lifting of the bed frame.

The geometry was designed around a comfortable grip and secure two-screw mounting. The reinforced construction is intended to withstand repeated loading while retaining a certain degree of flexibility.

The model is designed to be printed flat on the build plate, without supports.

Recommended print settings

Material: TPU for ACE / TPU 68D

Layer height: 0.20 mm

Walls: 15–20 minimum

Infill: 30–50%

Top layers: 8–10

Bottom layers: 8–10

Supports: Not required

Print orientation: Flat on the build plate

Why so many walls?

The handle is a functional load-bearing part, not a decorative object. The high wall count significantly increases the amount of solid material around the load-bearing geometry and mounting area.

For this reason, I recommend 15–20 walls minimum, especially if the handle will be used frequently or with a heavier mattress.

The infill can be adjusted between 30–50% depending on the required strength and printing time.

Highlights

• Designed for TPU for ACE / TPU 68D
• Strong yet flexible
• Reinforced construction
• Comfortable ergonomic grip
• Two-point screw mounting
• No supports required
• Prints flat on the build plate
• Designed for repeated everyday use
• Ideal replacement for broken or deteriorated original handles

Important

Print the handle flat on the build plate as shown in the model orientation.

For maximum durability, use the recommended 15–20+ walls rather than simply increasing infill. This keeps the critical structural areas much more robust while preserving the benefits of TPU.
