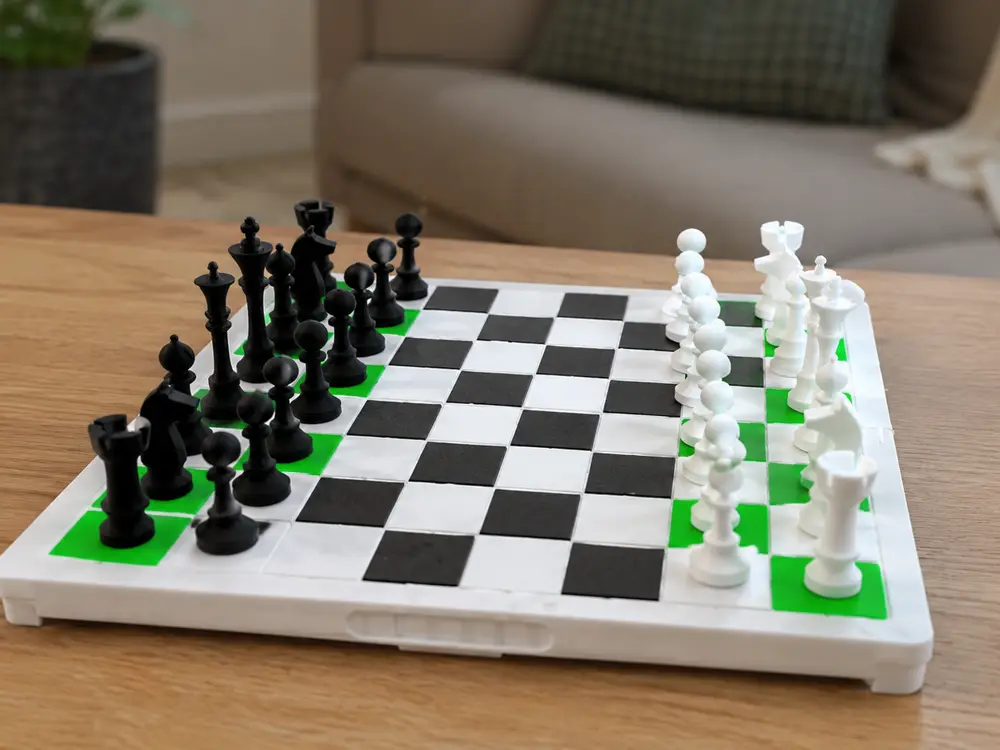

Chess travel edition

This print profile is optimized for the Chess Travel Edition, producing clean, durable, and precisely fitting parts. The profile ensures smooth piece movement, crisp board details, and reliable magnetic or snap-fit tolerances (if applicable). It balances print quality and speed, making it suitable for both functional gameplay and an attractive display piece. No supports are required for most components when printed in the recommended orientation.

• Printer Type: FDM 3D Printer
• Layer Height: 0.20 mm
• Initial Layer Height: 0.20 mm
• Nozzle Diameter: 0.40 mm
• Wall Loops: 3
• Top Layers: 5
• Bottom Layers: 5
• Infill: 15–20% (Grid or Gyroid)
• Print Speed: 50–60 mm/s
• Travel Speed: 150 mm/s
• Material: PLA (Recommended)
• Nozzle Temperature: 200–210°C
• Bed Temperature: 55–60°C
• Cooling Fan: 100% after the first few layers
• Supports: Not Required
• Build Plate Adhesion: Skirt
• Brim: Optional (3–5 mm for small chess pieces)
• Orientation: Print all pieces upright; print the board flat on the build plate.
