DIY Pegboard Drill Guide (Ø8 mm | 30 mm Spacing)

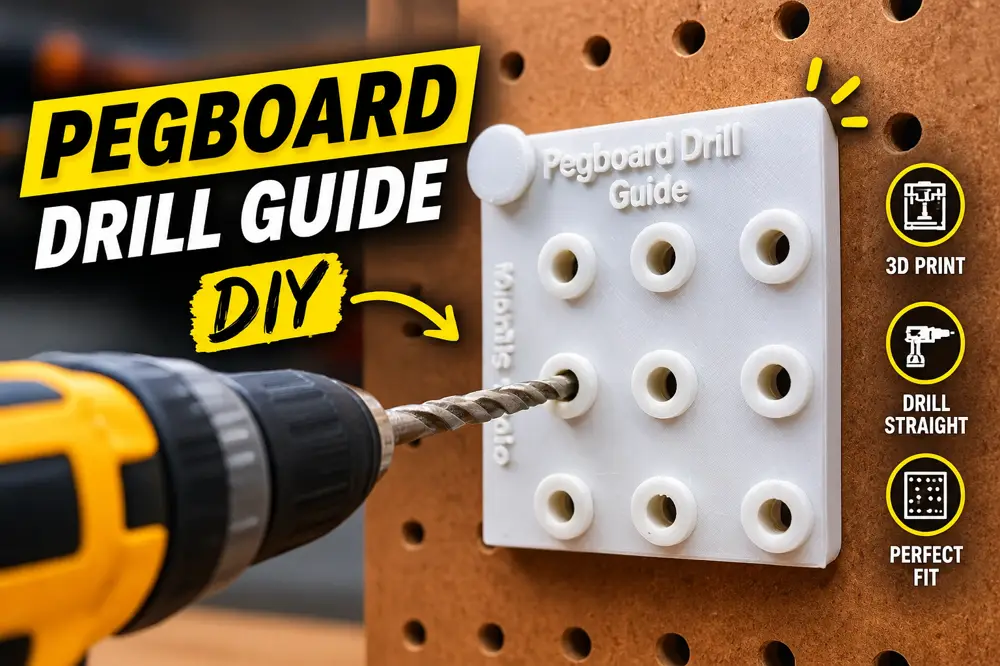

Make perfectly aligned pegboard holes every time with this simple and reliable 3D printable drilling guide.

This jig is designed to help you drill accurate 8 mm holes with a 30 mm center-to-center spacing, making it ideal for creating custom pegboards or expanding existing ones. Whether you're building a workshop wall, tool organizer, or modular storage system, this guide saves time and improves accuracy.

Features

• ✅ Precise 8 mm drill guide holes
• ✅ 30 mm center-to-center spacing
• ✅ Easy hole alignment for repeated drilling
• ✅ Compact and lightweight
• ✅ Perfect for DIY workshops and woodworking projects
• ✅ 3D printable with no supports required

Specifications

• Hole Diameter: 8 mm
• Hole Spacing: 30 mm (center to center)
• Guide Layout: 3 × 3 holes
• Material Recommendation: PLA, PETG, or ABS
• Support: Not required
• Print Time: Approximately 1–2 hours (depending on printer settings)

How to Use

1. Position the drill guide where you want to start.
2. Secure it using clamps or by holding it firmly against the board.
3. Drill through the guide holes using an 8 mm drill bit.
4. Move the guide by matching one or more existing holes to continue the pattern with perfect alignment.

This method allows you to create large pegboards while maintaining consistent spacing across the entire surface.

Recommended Print Settings

• Layer Height: 0.20 mm
• Walls: 3–4
• Infill: 30–50%
• Material: PLA or PETG
• No supports required

Ideal For

• Workshop pegboards
• Tool storage walls
• Garage organization
• Craft rooms
• DIY modular storage systems

If you find this model useful, please consider liking, downloading, and sharing your make. Your support helps me create more practical 3D printable tools for the maker community.
