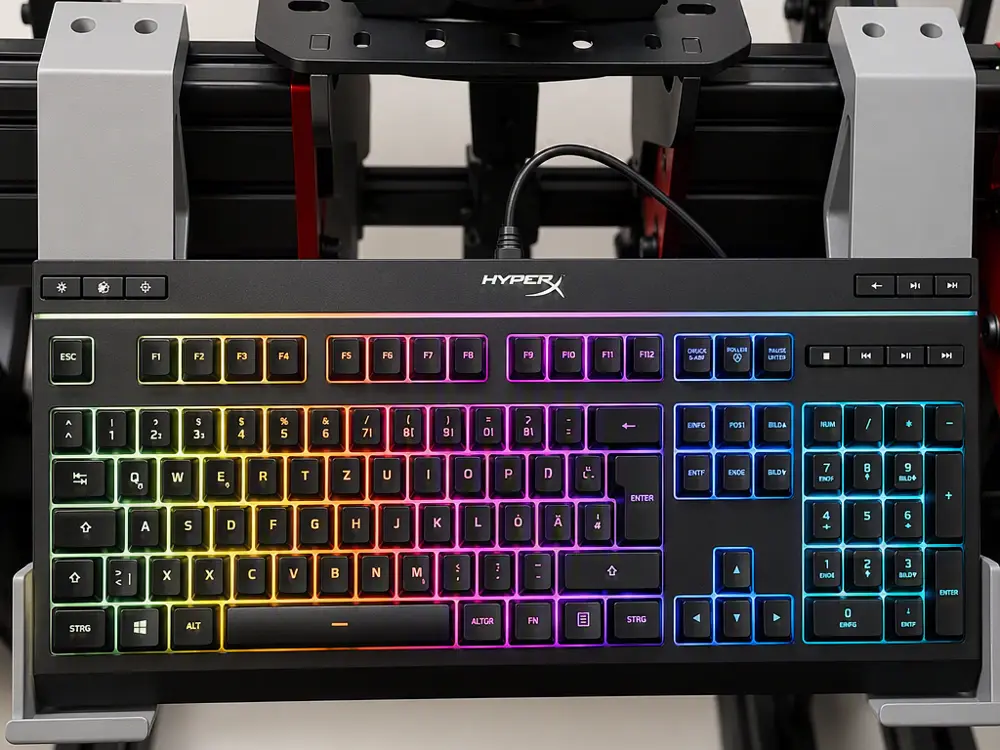

Extended Sim Rig Full size Keyboard Mount (8040 Aluminum Extrusion)

Summary

Give your full-size keyboard the perfect place in your sim racing setup with this extended keyboard mount for 8040 aluminum extrusion profiles. Unlike many compact keyboard trays, this design provides enough space for full-size keyboards while keeping them easily accessible, even when the steering wheel is installed.

The extended layout allows comfortable typing, navigation, and game setup adjustments without having to move the keyboard or leave the cockpit. At the same time, the design is optimized for efficient 3D printing, reducing print time and material consumption while maintaining excellent stability.

The mounting holes are specifically sized for M6 hex head bolts, making installation on common aluminum profile systems quick and straightforward.

Perfect for sim racing cockpits, flight simulator rigs, and custom aluminum profile setups.

Advantages

• Designed for 8040 aluminum extrusion profiles
• Supports full-size keyboards
• Comfortable access while seated in the rig
• Usable even with the steering wheel installed
• Holes sized for M6 hex head bolts
• Extended design for improved ergonomics
• Stable and durable construction
• Material-efficient design
• Reduced print time compared to solid trays
• Easy installation
• Ideal for sim racing and simulator cockpits
• No supports required
• Clean and professional appearance

Print

• Layer Height: 0.20 mm
• Walls/Perimeters: 3
• Infill: 20%
• Supports: not required
• Brim: not required
• Print Orientation: as given in the files

Assembly

1. Print all required parts.
2. Attach the mount to the 8040 aluminum extrusion using M6 hex head bolts and suitable T-nuts.
3. Adjust the position to your preferred height and reach.
4. Place your keyboard onto the mount.
5. Tighten all fasteners and verify stability before use.
6. Attach your Wheel

Hardware for mounting to the aluminum profile is required and not included.
