Festive Lamppost

Original design from Maker Word under "Festive Lamppost." This version is one I updated and modified to to fit the Anycubic Kobra S1 with has a max build plate of 250 x 250 x 250mm. Original one was designed for the BambuLab Printer.

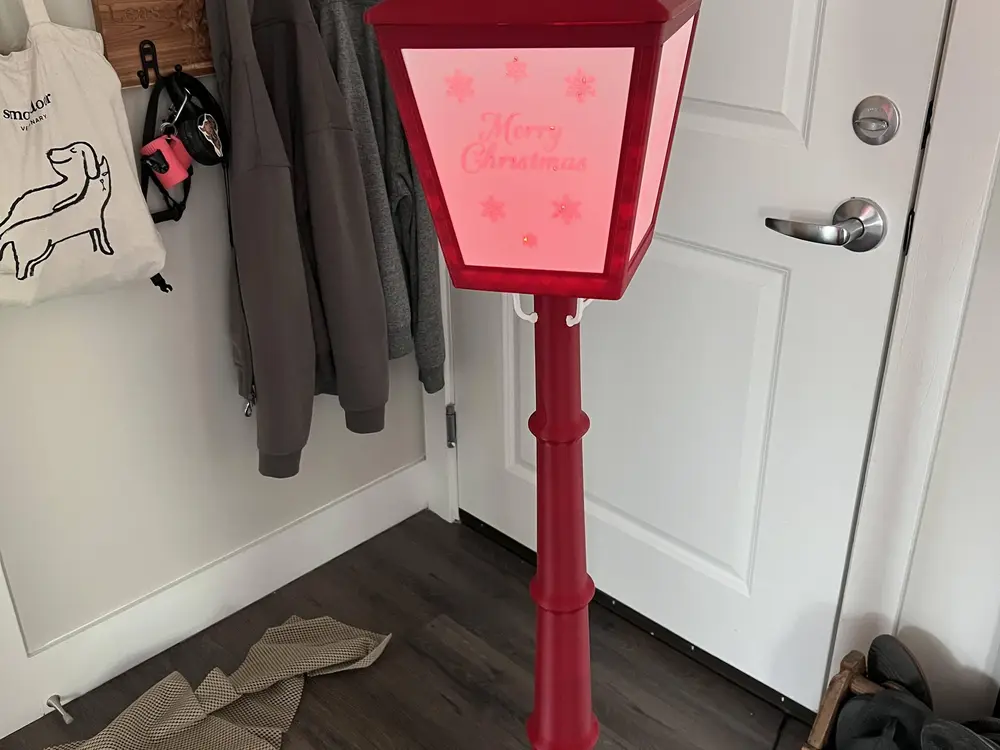

Once assembled, the full height is 4'5" (or 54" or 137cm or 1.37meters)

This version has the base and 4 post parts which are threaded and screw together. Screw to top main into place onto post part 4. The original has gold decorations but the model I printed are white. I think it looks better and I did not have to buy gold filament that I will likely never use again. If you wish, you could spray paint them gold. I was able to clip in place the decorations at the bottom but the decorations you see on top needed to be held with superglue.

The light cylinder has a spiral with an indentation channel exactly the length of a 1meter strip light but used a longer light stip. I purchased the Ecosmart 16.4 ft (5 meters long) with changes colors, uses a remote control, and can be plugged to a battery pack as well as an outlet, I rolled it tight on the light cylinder to make sure the lamppost was bright enough.

You can wire the lights either way from bottom to top or top to bottom and run the cable down the pole if not using a battery pack.

There is an added two exit points for the cable. One in post part 4 with accompanying cable holder which is the only part that needs supports.

The included side panes are etched on the reverse with a decreased thickness so the design appears lighter. The original design was for BambuLab Basic White but I chose eSun PLA Basic white. Because the filament would have made the light barely go through, I changed the thickness of the panel from 1 mm to 0.6mm. It still stroing enough yet translucent as well.
