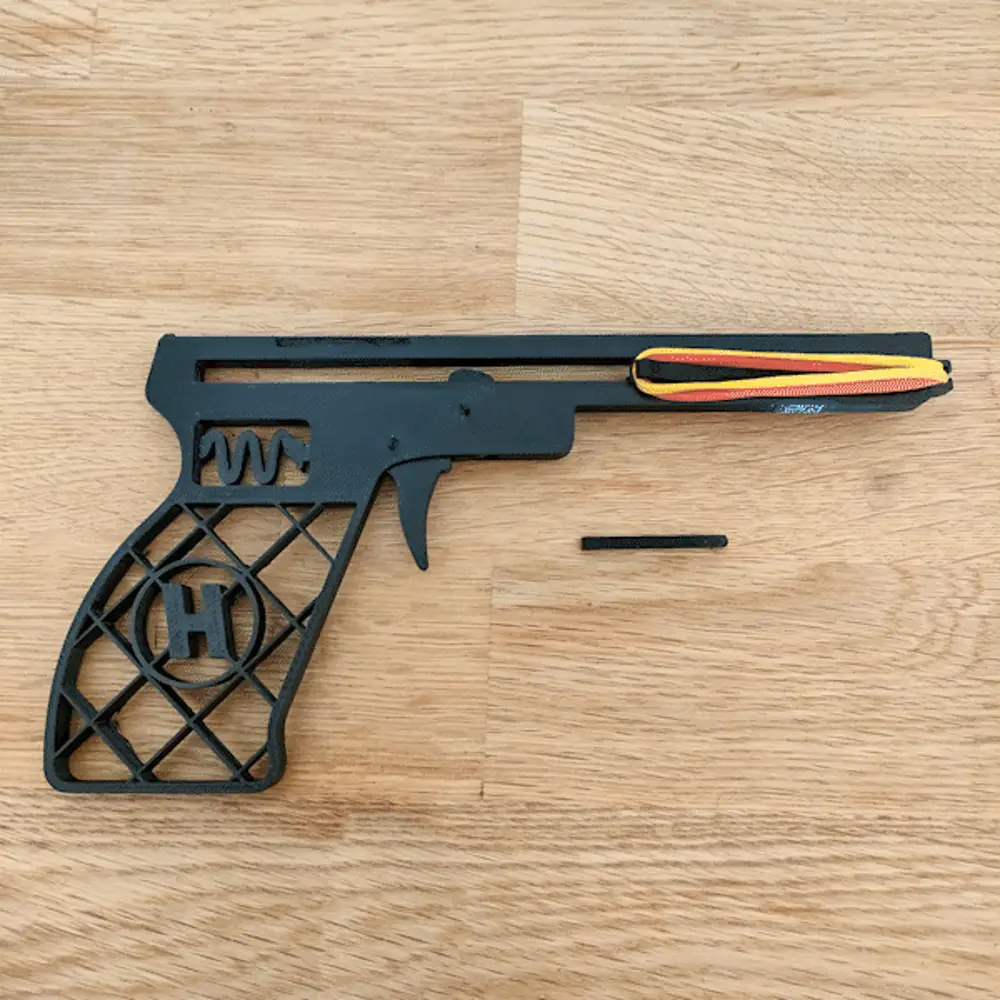

H-Gun - Crossbow Pistol

H-Gun

A rubber band crossbow pistol, available in two versions: one that fires small, lightweight projectiles and one that fires darts. It's very quick to print, taking just over an hour. To make it, you'll only need one or two office rubber bands.

It is recommended to print petg, but it should work with pla too.

Assembly:

- Carefully remove all supports.

- Pay attention to the internal supports in the trigger hole.

- Make sure the trigger spring is not jammed.

- Unplug the holes on the side of the body that rests on the print bed.

- Insert the trigger lock wheel into the recess, centering the holes.

- Insert a piece of filament to secure the part.

- you can block the filament by squeezing it with pliers or heating it with a soldering iron.

- do the same with the trigger.

- Press the trigger on the spring to insert it more easily, place the wheel in this position and insert the trigger by pressing in the direction of the spring until the holes match.

Clean the cursor of any media residue.

Insert the slider into the main body, widening the upright.

- position the elastic as in the photo.

- load the trolley backwards until you hear the lock click.

-If you printed the bullet version: insert the bullet into the side slot.

-If you printed the dart version: insert the dart into the barrel.

Aim and try to pull the trigger.
