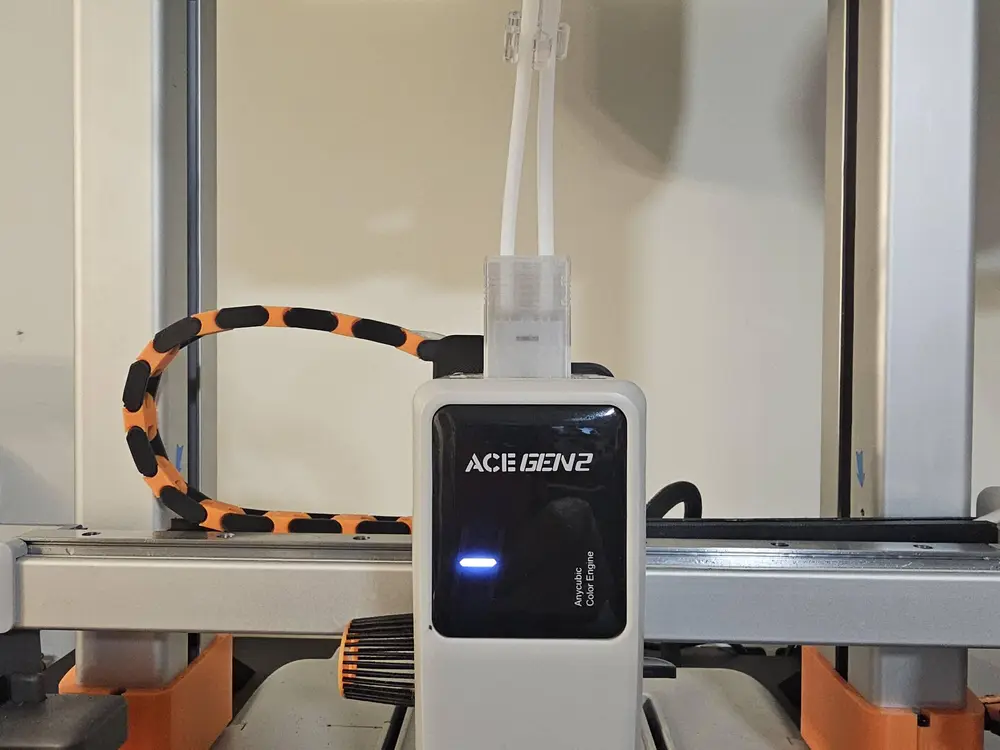

Kobra X X-Axis Chain
YOU WILL NEED 2 M3x8 SCREWS
So you can stuff your x-axis chain behind the printhead and out of the way.
Designed to clear the Ac(E) X top mounted filament enclosure.
The print head adapter has notches on both sides to clip onto the vents on the sides of the print head.
For the guide platform there is a small nub that sits into one of the holes/grooves on the back side of the x-axis - There are red arrows pointing to these features in the pictures.
Take the top screws out from the z-axis arms and slide the guide behind the x-axis track. Use 2 M3x8 screws in place of the screws removed to secure to the z-axis arms.
Now start snapping your chain together, alternating facing up and down. Both ends of the chain should end with "Chain B".
Happy Printing!
