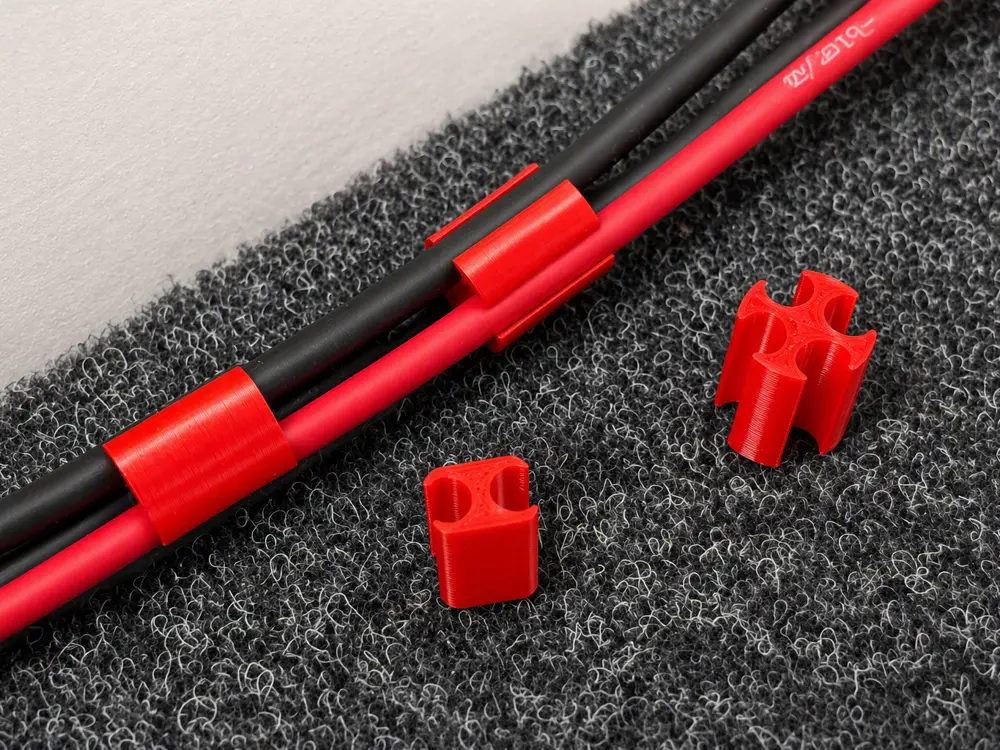

Photovoltaic Cable Clips Organizer (MC4 PV wiring for Solar Energy)
Summary
Keep your photovoltaic wiring neat, secure, and professional with these simple snap-on cable clips. Designed specifically for solar panel installations, these organizers help manage MC4-compatible solar cables and prevent loose wiring from hanging below panels or racks.
The clips can be attached quickly without tools and provide reliable cable routing for a cleaner and more organized solar system.
Advantages
- Simple snap-on installation / No tools required
- Designed for common solar PV wiring
- Available for 4 mm² and 6 mm² cables
- Versions for 2 or 4 cables
- Helps prevent cable sagging
- Improves cable management and organization
- Compact and lightweight design
- Suitable for rooftop and ground-mounted PV systems (Use PETG for outside use!)
- Fast and easy to print
Versions
The set includes versions for 4 mm² and 6 mm² cables, available as 2-cable and 4-cable organizers, making them suitable for a wide variety of PV installations.
Want to connect more cables? Leave me a comment!
- Layer Height: 0.24mm
- Perimeters / Walls: 5 walls
- Top/Bottom Layers: 4 layers
- Top / Bottom pattern: concentric
- Infill: not needed
- Supports: not needed
- Brim: Optional
For outdoor use, UV- and weather-resistant materials such as ASA or PETG are recommended. PLA may become brittle over time when exposed to sunlight and temperature fluctuations.
Assembly
- Print the desired clip size (4 mm² or 6 mm²).
- Route the solar cables into the clip channels.
- Snap the clip onto the mounting edge, frame, or designated structure.
- Verify that all cables are securely retained and not under tension.
No additional hardware or tools are required.
Just to be on the safe side, you could use a cable tie to make sure everything is extra secure.
