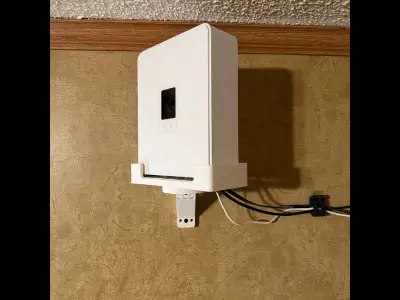

Rotating Wall Mount for T-Mobile G5AR

This rotatable wall mount is designed specifically for the T-Mobile G5AR Gateway, giving you a cleaner setup while still allowing the gateway to rotate for easier positioning and signal adjustment.

The model includes two main parts: a wall-mounted arm and a gateway holder. The holder rotates on the mounting arm using simple M4 hardware, making it easy to adjust the gateway after installation.

Required Hardware:

M4x20 bolt

M4 spacer

M4 locking ring

M4 nut

Up to 6 #8 x 1-1/4 in. drywall screws

The M4 spacer and locking ring are optional, but recommended. They help keep the nut tight while still allowing the gateway holder to rotate smoothly.

Supports are recommended for the wall-mounted arm. Supports are not needed for the gateway holder.

Before mounting it to the wall, assemble the mount and rotate the gateway holder a few times. This helps loosen the fit and makes rotation easier once installed.

Approximate Model Dimensions:

Mounting Arm: 38mm L x 107mm W x 174mm H

Gateway Holder: 91mm L x 204mm W x 37mm H

Measurements have been rounded up to the next largest full millimeter.
