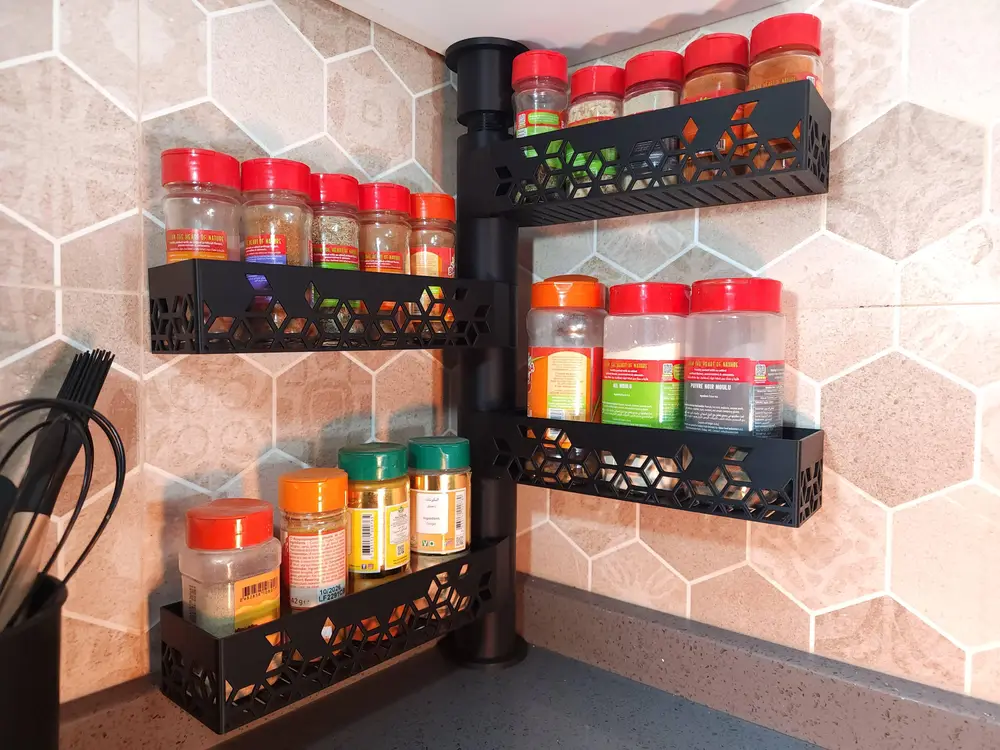

Spice Rack (extendable)

This is Spice rack to organize your spices with easy quick access.

Features:

• 90 to 360 degrees rotation (depending on your placement).
• Can stack more than 4 baskets (each extension including the rotation bar will add 100mm to the total height).
• Threaded top cap to tighten the rack assembly between the counter and the cabinet.
• Included spacers to increase the space between the basket and or to fill the height gap.

Technical Numbers:

• The total height of the current assembly is 45cm extendable by the top cap to 47cm without the spacers.
• each extra basket you want to add will be 10cm (so if you want to add a 5th basket the total size will be 55cm expandable to 57cm).
• I included 3 spacers, 5mm, 10mm and 15mm spacers incase you need to increase the height by the included spacers. (spacers goes above the basket not under).

Before you print:

• print plate should be cleaned with soapy water or IPA.
• machine should be properly maintained and lubricated.
• machine should be pre calibrated, Auto bed level, and pressure advance.
• Filament Flow rate should calibrated.
• Filament temperature should be optimized.

I included an Assembly instruction PDF of how to fully assemble the rack - if you have any question please feel free to ask.

Happy Printing ^^
