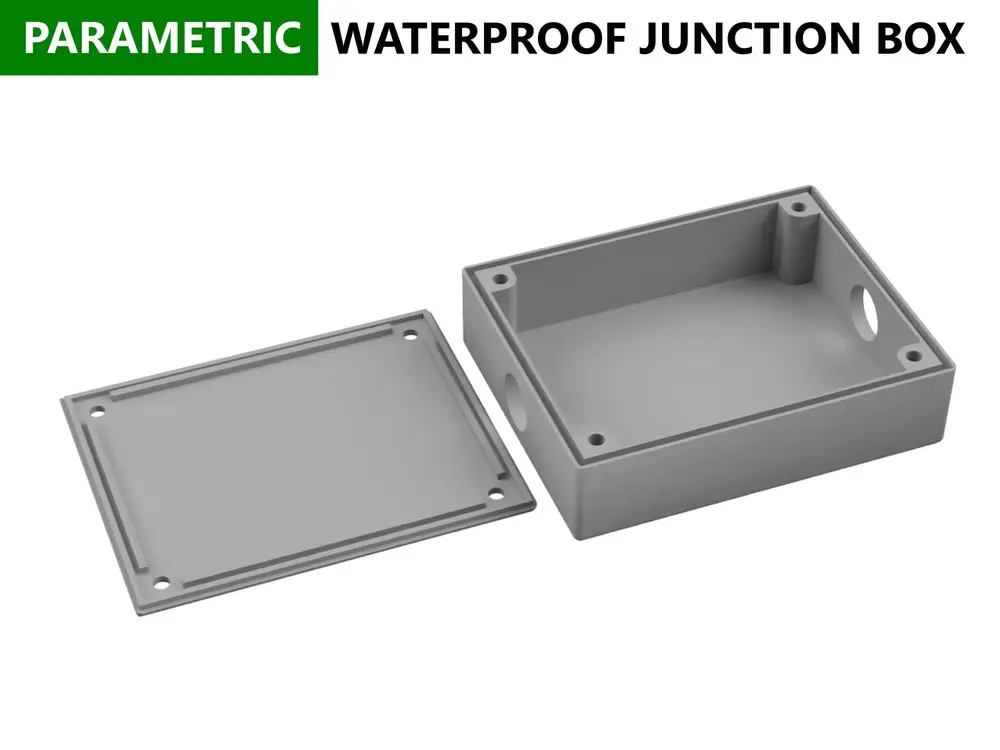

Waterproof Junction Box v1

Craft custom waterproof * junction boxes to your exact specifications with this versatile Fusion 360 parametric model.

Customize every dimension:

• Height
• Width
• Depth
• Screw size
• Side hole size
• Dimensional parameters of the gasket
• and more (every field is documented)!

Download now and start creating the perfect junction boxes for your needs!

* Clearly, this box does not have any safety certification. If you want to improve its water resistance, I recommend brushing resin on the box or filling it with electrical insulating gel. Also, I recommend using a high-temperature resistant filament.
