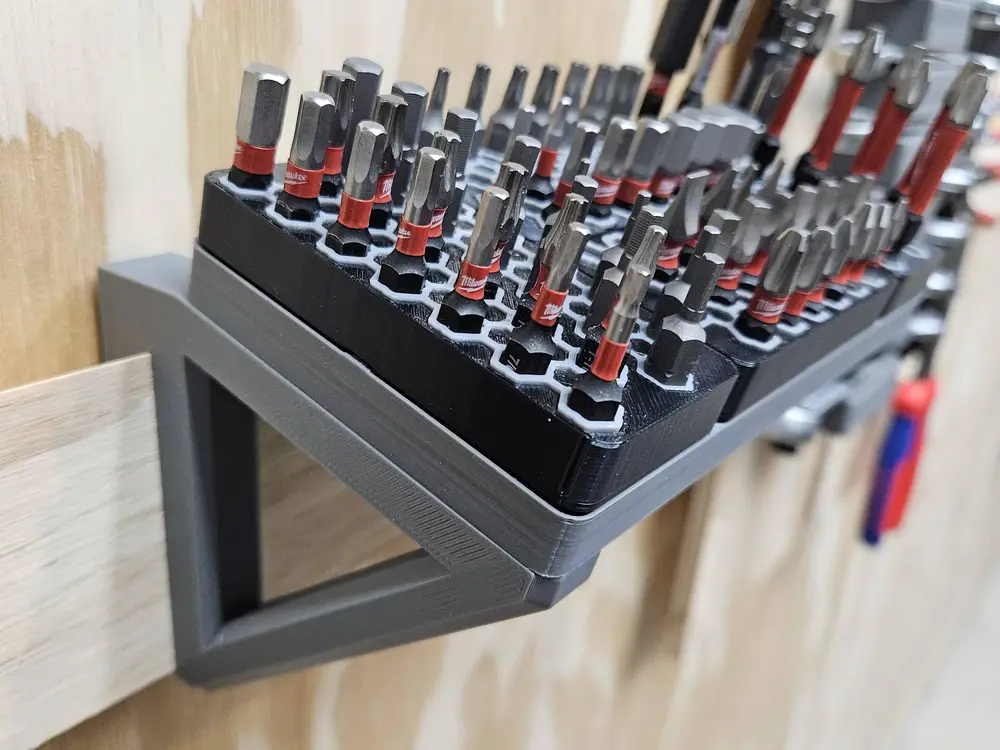

Gridfinity French Cleat Rack

This is a Gridfinity base adapter for a French cleat wall organization system. The brackets assemble onto the base with (4) M3 x 8mm screws. You'll also need M3 heat set inserts for the brackets themselves.

I have two bases designed for it which have a deeper countersink for the screws on each corner.

One is a 2x4 base and the other is a 2x6 base. Anything past a 2x6 base will have too much flex anyway.

The brackets require M3 heat set inserts which can be installed with a soldering iron and special tip adapter.

I used these inserts: https://amzn.to/4pTML2L

And this adapter set: https://amzn.to/3LU3tB5
